Internal and external corners for roof membranes
Structural parts for the easy sealing of corners in PVC or FPO/PP roof membranes
Function
KALA internal and external corners are used for sealing a flat roof where a corner formation has to be reliably sealed in the long term. The moulded parts for the connection or termination of a corner in the roof envelope can be used on both sides and are a quick solution for otherwise difficult to achieve seal tightness in this problem area. All you need to do is weld!
Material
The internal and external corners corners are available in PVC and FPO/PP to match the roof membrane. In addition, you receive these products from us in excellent original equipment quality.
This means you can rely on high-quality and long-lasting functionality.
Versions
| Material | Feature |
|---|---|
| PVC light grey | Prefab corners, weldable to roof membrane |
| FPO/PP white | |
| FPO/PP beige grey | |
| FPO/PP grey | |
| FPO/PP anthracite grey |

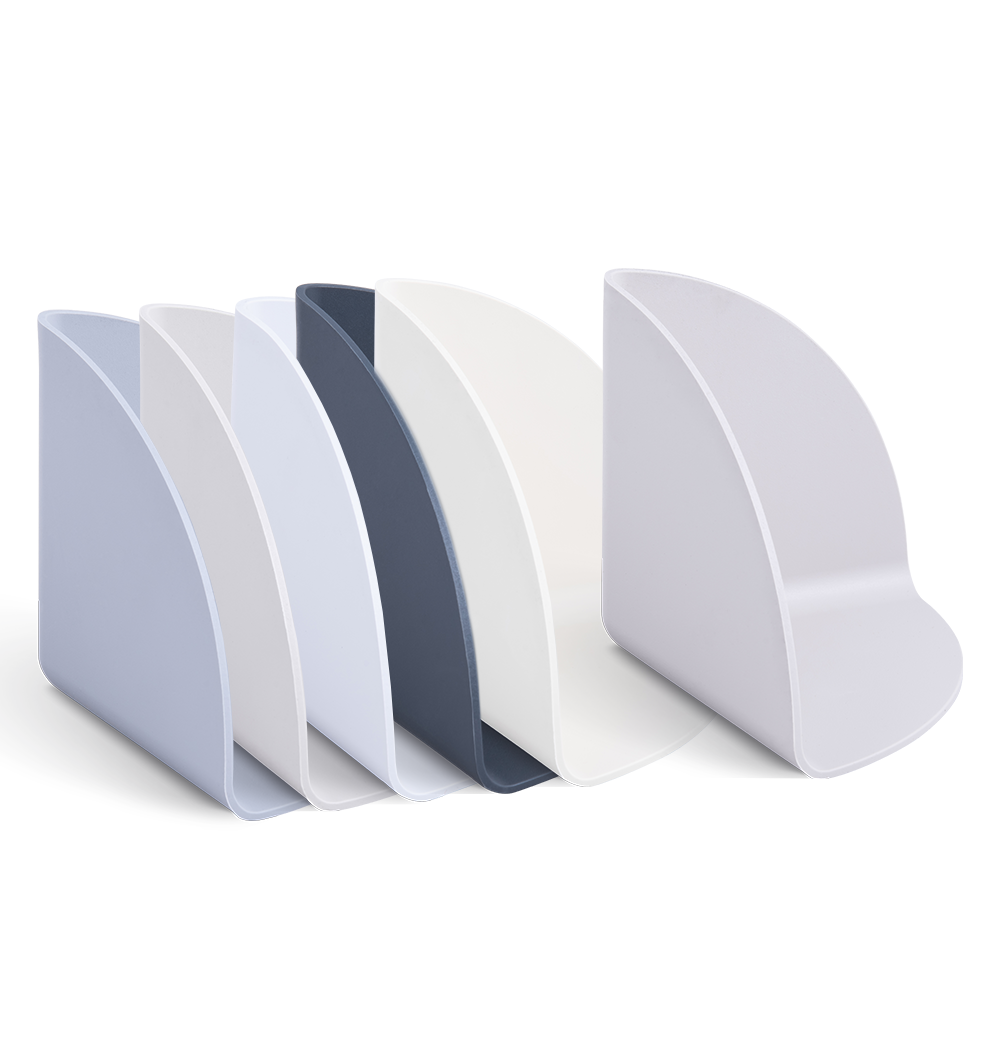

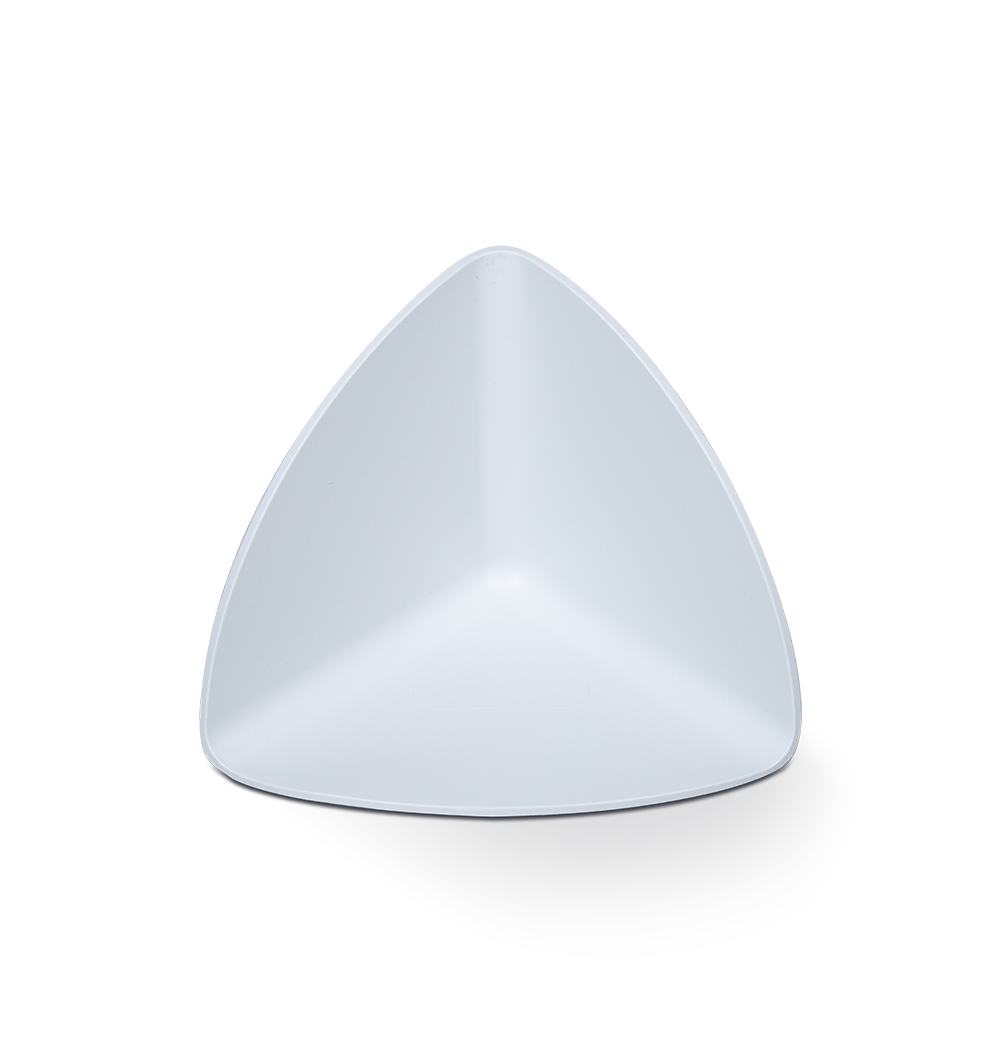

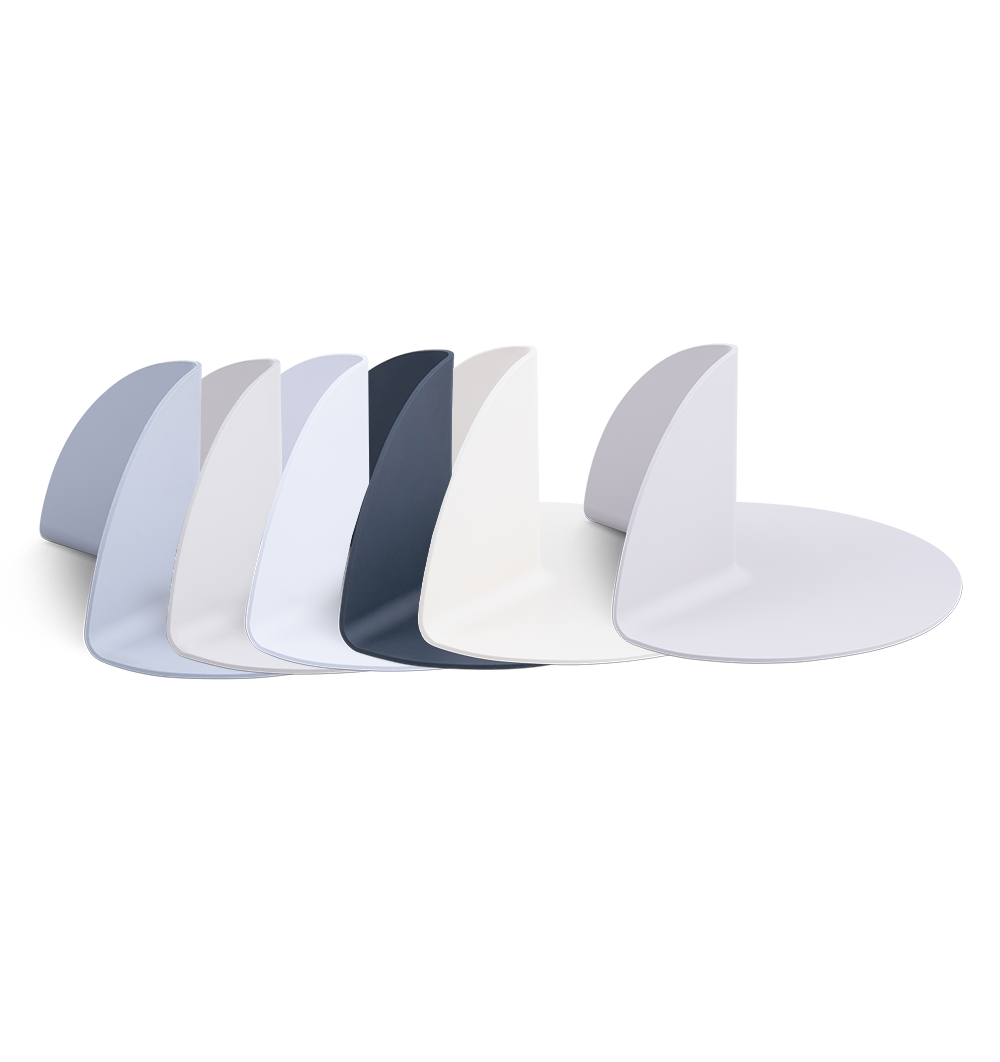

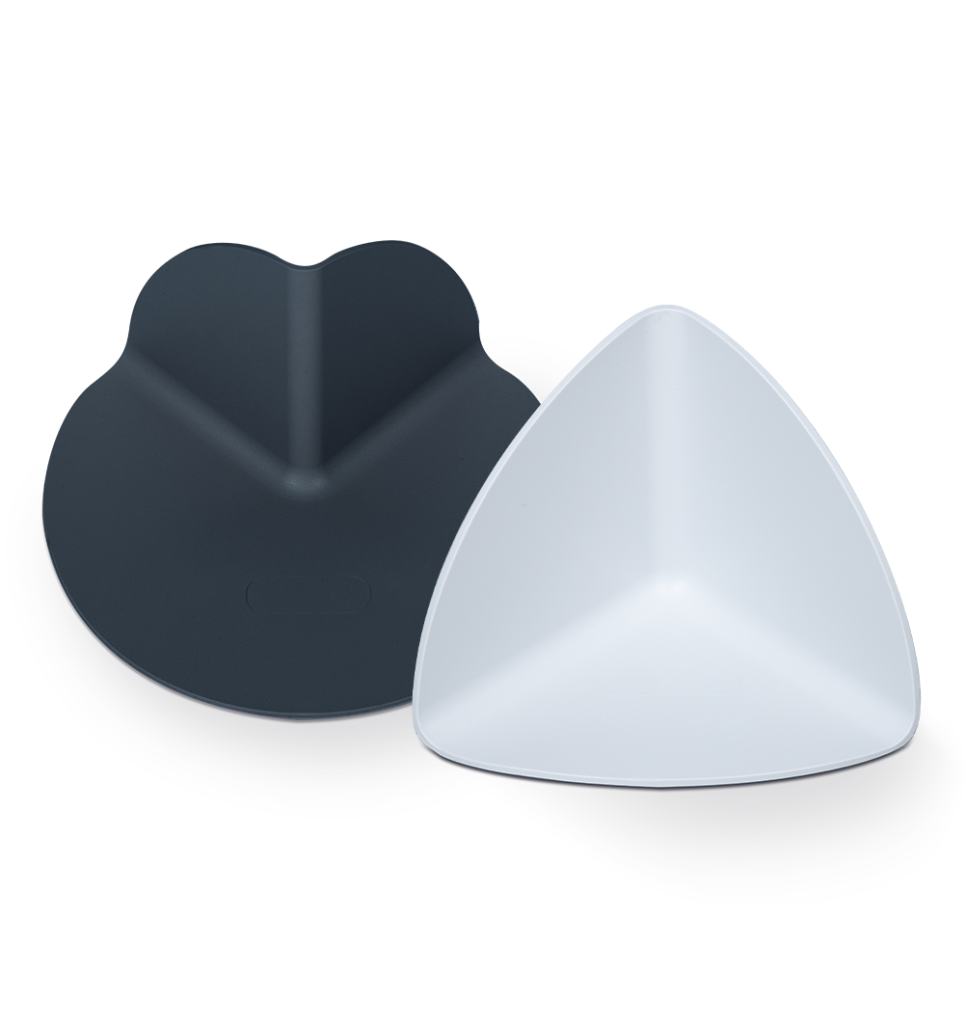

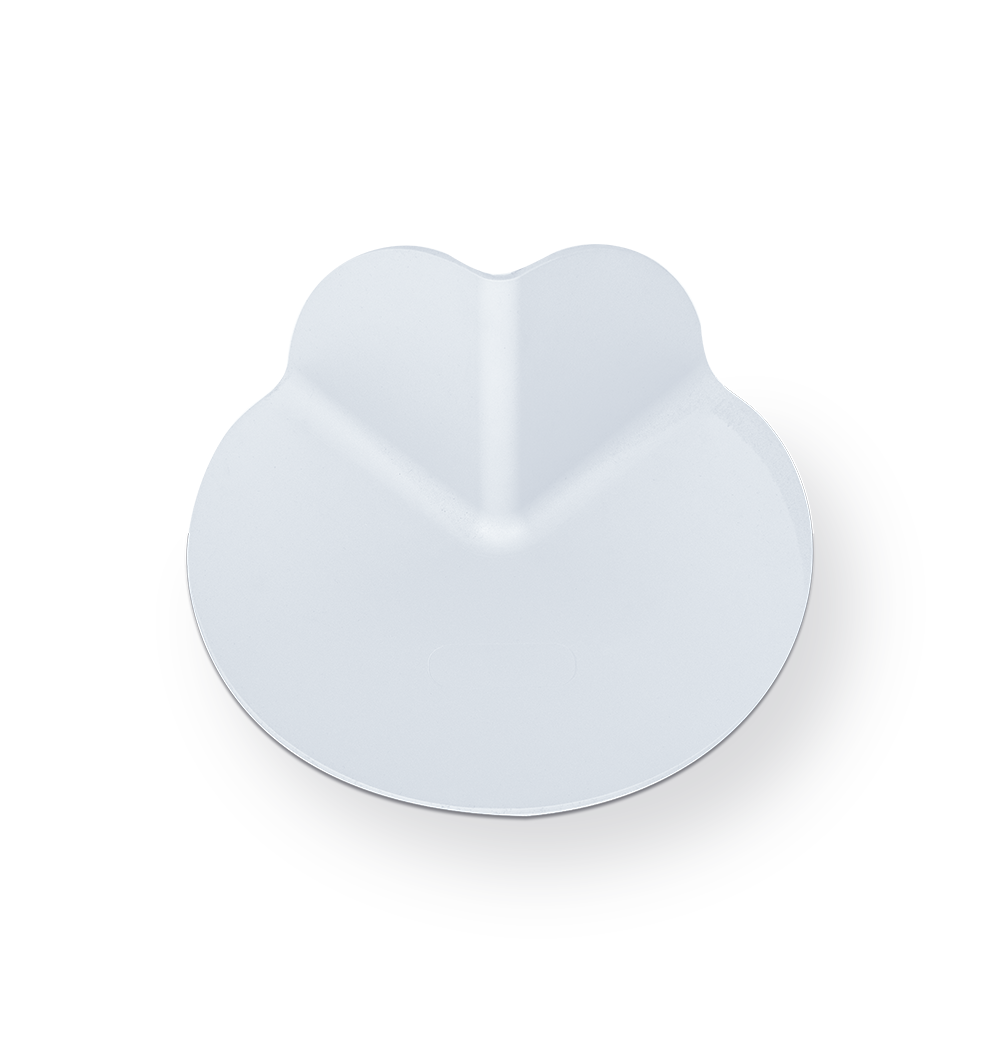

Examples
Technical drawings
| Technical data | |||
|---|---|---|---|
| Interior corners | External corners | ||
| H | 95 | 102 | mm |
| T | 85 | 90 | |
| S | 2 | 2 | |
Downloads
Package units
Supplied in cartons, each containing 25 units
Tailored to meet your requirements
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
