NEW
With this variant, a maintenance-free suction fan driven by wind (achieving very high airflow) is placed on the base unit. The vent is driving rain and snow proof, is supplied completely ready for installation and can be welded directly to the roofing membrane.
Attention: The processing instructions of the roofing membrane manufacturers must be observed; Materials and material compounds used may be subject to changes
Variants: PVC, FPO/PP and BIT for connection to the respective matching material variant of the roofing membrane. The base unit material is modified to be weatherresistant. UV-stabilised, resistant to heat degradation and oxidative ageing as well as cold impact resistant. The suction fan attachment is made of high-quality plastic.
Align the fan on the substrate and secure it in position at four points on the substrate using the holes provided on the edge of the tray. Professionally weld the connection sleeve to the waterproofing membrane all around in accordance with the roofing membrane manufacturer‘s specifications.
| Material | Technical details 2 | Height | Membrane connection |
|
|---|---|---|---|---|
| PVC similar to RAL 7035, Light Grey |
With Power vent plastic attachment, uninsulated |
D 125 mm (DN 125) |
518 mm 1 | PVC, Light Grey |
| D 160 mm (DN 150) |
||||
1 Special lengths available on request
2 Also available as a version for warm roofs

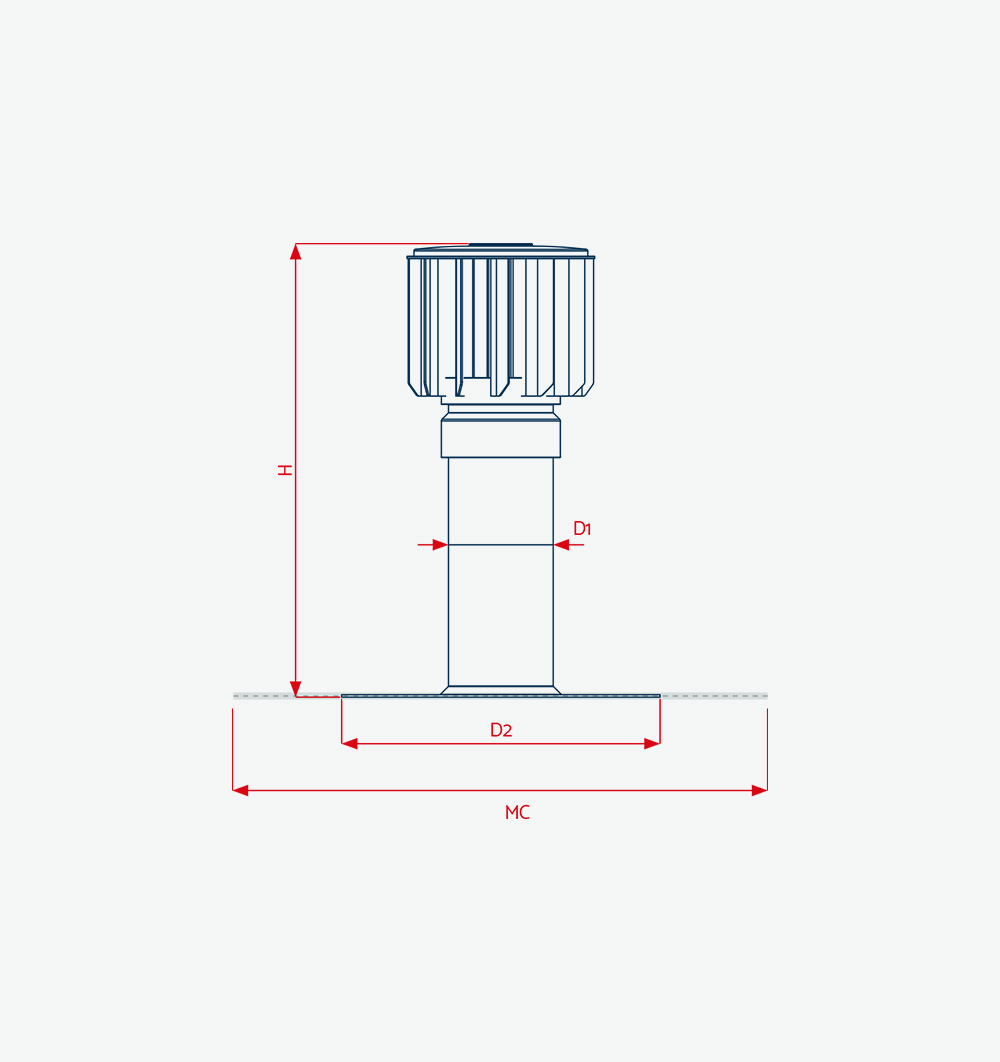

| H | 535 mm 1 | |
| D1 (D Pipe) | D 125 mm (DN 125) / D 160 mm (DN 150) | |
| D2 (D Plate) | 380 mm | |
| Membrane connection (MC) |
D 125 mm (DN 125) bis D 160 mm (DN 150) |
L 570 x W 570 mm |
1 Special lengths available on request
Delivery in box, PU 1 piece
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
