Gooseneck / energy conduit
For optimal and efficient energy transfer in flat roof installations, such as pipes or cables. Usable as gooseneck/energy conduit for flat roof vents.
Notice
Available as a set as cold or warm roof version.
Attention: Please note that the visual representation may differ from the illustration.
Material
- FPO/PP Black
- Cold impact resistant, weather-resistant
Versions
| Material | Diameter 1,2 |
|---|---|
| FPO/PP Black |
D 75 mm (DN 70) |
| D 110 mm (DN 100) | |
| D 125 mm (DN 125) | |
| D 160 mm (DN 150) |
1 Available as a set as cold or warm roof version
2 Attention: Please note that the visual representation may differ from the illustration
Examples

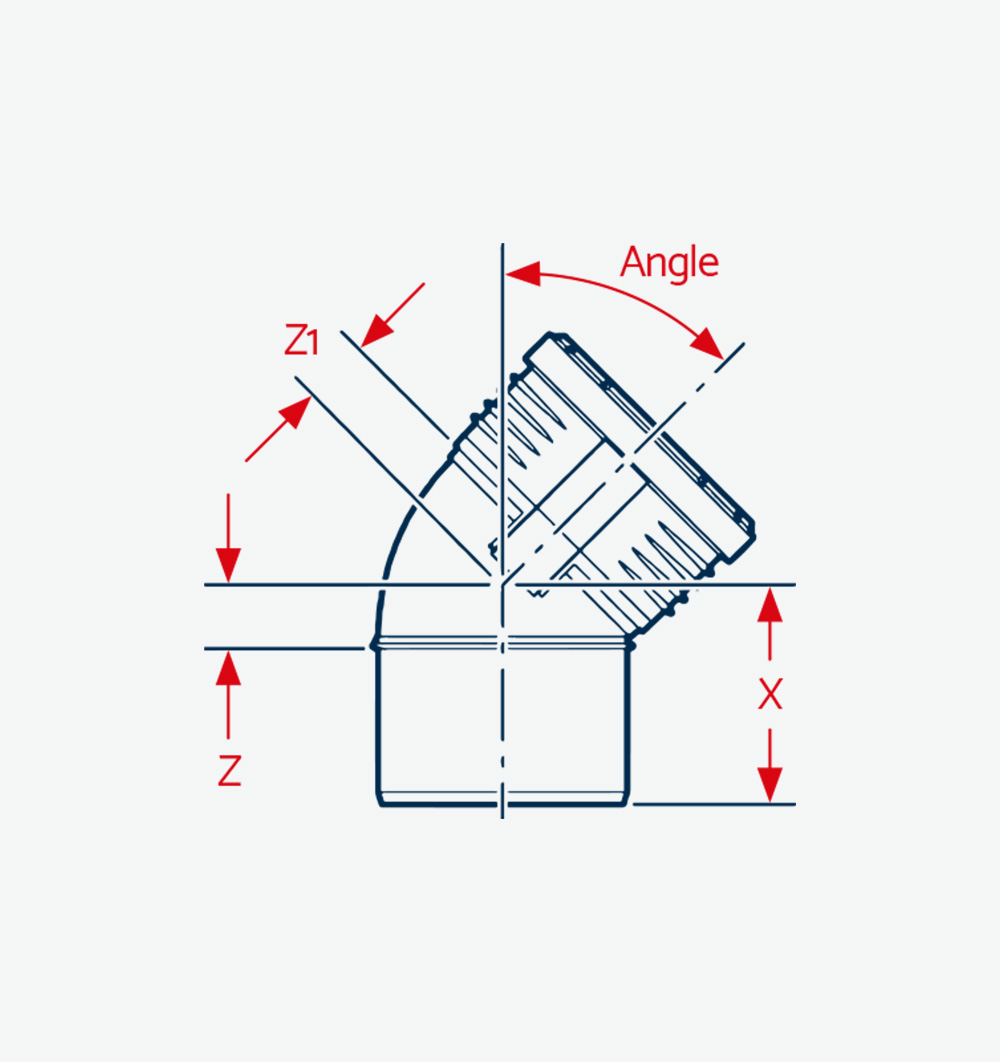

Technical drawings
Technical data
| Diameter | Angle | X | Z | Z1 |
|---|---|---|---|---|
| D 75 mm (DN 70) | 45 ° | 7.6 cm | 2.0 cm | 2.1 cm |
| D 110 mm (DN 100) | 45 ° | 9.7 cm | 3.0 cm | 2.9 cm |
| D 125 mm (DN 125) | 45 ° | 10.7 cm | 3.3 cm | 3.3 cm |
| D 160 mm (DN 150) | 45 ° | 12.2 cm | 4.2 cm | 4.0 cm |
Available sizes
- D 75 mm (DN 70)
- D 110 mm (DN 100)
- D 125 mm (DN 125)
- D 160 mm (DN 150)
Packaging units
Delivery in box, PU 1 piece
Downloads
Tailored to meet your requirements
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
Accessories
EPDM cap to secure the opening against animals and provide increased weather protection (cut a suitable undersized hole in the lid base; the material is elastic and fits tightly around fed-through cables or pipes).
Notice
Available as a set as cold or warm roof version.
Attention: Please note that the visual representation may differ from the illustration.
Material
- FPO/PP Black
- Cold impact resistant, weather-resistant
Versions
| Material | Diameter 1,2 |
|---|---|
| FPO/PP Black |
D 75 mm (DN 70) |
| D 110 mm (DN 100) | |
| D 125 mm (DN 125) | |
| D 160 mm (DN 150) |
1 Available as a set as cold or warm roof version
2 Attention: Please note that the visual representation may differ from the illustration
Examples
Technical drawings
Technical data
| Diameter | Angle | X | Z | Z1 |
|---|---|---|---|---|
| D 75 mm (DN 70) | 45 ° | 7.6 cm | 2.0 cm | 2.1 cm |
| D 110 mm (DN 100) | 45 ° | 9.7 cm | 3.0 cm | 2.9 cm |
| D 125 mm (DN 125) | 45 ° | 10.7 cm | 3.3 cm | 3.3 cm |
| D 160 mm (DN 150) | 45 ° | 12.2 cm | 4.2 cm | 4.0 cm |
Available sizes
- D 75 mm (DN 70)
- D 110 mm (DN 100)
- D 125 mm (DN 125)
- D 160 mm (DN 150)
Packaging units
Delivery in box, PU 1 piece
Downloads
Tailored to meet your requirements
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
Accessories
EPDM cap to secure the opening against animals and provide increased weather protection (cut a suitable undersized hole in the lid base; the material is elastic and fits tightly around fed-through cables or pipes).
