NEW
The inspection chamber reliably holds back coarse dirt in extensive green roofs and prevents accumulation at the gully. Larger dirt particles are also retained. The gully‘s functionality remains guaranteed. The chamber cover can be removed for inspection and maintenance purposes.
Attention: The processing instructions from the manufacturers of the drainage elements into which the attenuation unit is installed must be observed. Each attenuation unit is calculated individually and can only be used for the application for which it was calculated.
PVC Light Grey, cold impact resistant, weather-resistant
The inspection chamber is placed centrally over the drainage point. The KALA attenuation unit can also be used, if desired. The chamber cover is placed on top and gravel is pushed against the inspection chamber on all sides to fix its position. The substrate is then poured around the chamber. Direct pouring the substrate against the inspection chamber should be avoided. Alternatively, a gravel stop strip can be mounted between the gravel and the substrate.
| Material | Dimensions 1 |
|---|---|
| PVC similar to RAL 7047, Telegrey 4 |
Length: 380 mm Width: 380 mm Height: 100 mm Hole inner dimension: D 250 mm |
Matching accessories:
Attenuation unit, removable
1 Other dimensions available on request

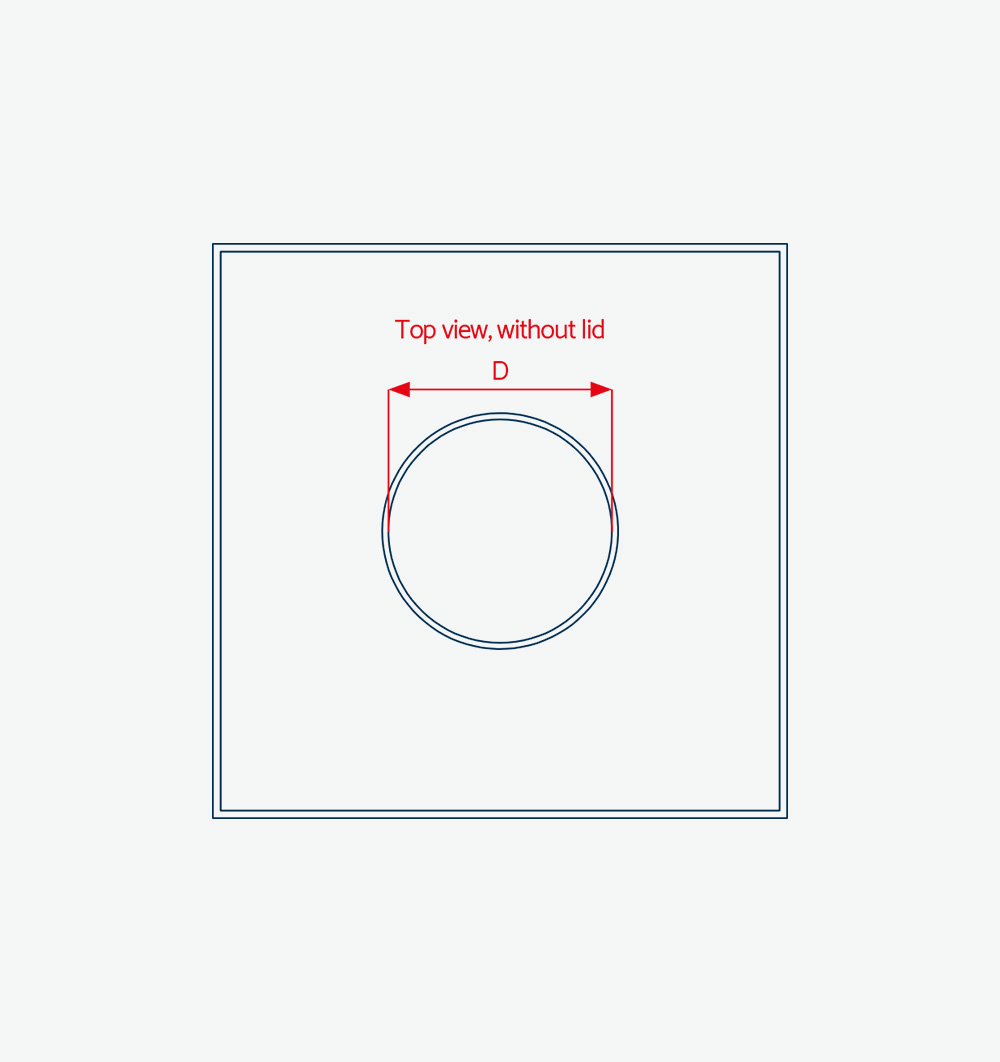

| L | 380 mm |
| B | 380 mm |
| H | 100 mm |
| D | 125 mm |
Inspection chamber frame, welded construction with associated chamber cover, ready for installation
Delivery in box, PU 1 piece
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
