The stack vent is used for ventilation:
Attention: The processing instructions of the roofing membrane manufacturers must be observed; Materials and material compounds used may be subject to changes
Variants: PVC, FPO/PP and BIT for connection to the respective matching material variant of the roofing membrane. The base unit material is modified to be weatherresistant. UV-stabilised, resistant to heat degradation and oxidative ageing as well as cold impact resistant.
Align the fan on the substrate and secure it in position at four points on the substrate using the holes provided on the edge of the tray. Professionally weld the connection sleeve to the waterproofing membrane all around in accordance with the roofing membrane manufacturer‘s specifications.
| Material | Technical details | Height | Manufacturer | Membrane connection |
|---|---|---|---|---|
| FPO/PP similar to RAL 7044, Silk Grey |
D 75 mm (DN 70) |
654 mm pipe length above / below tray 300 / 320 mm 1 |
Bauder | Thermo- plan T, Silver Grey |
| D 110 mm (DN 100) |
||||
| D 125 mm (DN 125) |
||||
| D 160 mm (DN 150) |
1 Special lengths available on request
| Material | Technical details | Height | Manufacturer | Membrane connection |
|---|---|---|---|---|
| FPO/PP similar to RAL 7044, Silk Grey |
D 75 mm (DN 70) |
654 mm pipe length above / below tray 300 / 320 mm 1 |
Sika | Sarnafil TS77, Beige |
| D 110 mm (DN 100) |
||||
| D 125 mm (DN 125) |
||||
| D 160 mm (DN 150) |
1 Special lengths available on request
| Material | Technical details | Height | Manufacturer | Membrane connection |
|---|---|---|---|---|
| FPO/PP similar to RAL 7044, Silk Grey |
D 75 mm (DN 70) |
654 mm pipe length above / below tray 300 / 320 mm 1 |
Sika | Sarnafil TS77, Window Grey |
| D 110 mm (DN 100) |
||||
| D 125 mm (DN 125) |
||||
| D 160 mm (DN 150) |
1 Special lengths available on request
| Material | Technical details | Height | Manufacturer | Membrane connection |
|---|---|---|---|---|
| FPO/PP similar to RAL 7044, Silk Grey |
D 75 mm (DN 70) |
654 mm pipe length above / below tray 300 / 320 mm 1 |
Soprema | FLAGON Premio, Sand Grey |
| D 110 mm (DN 100) |
||||
| D 125 mm (DN 125) |
||||
| D 160 mm (DN 150) |
1 Special lengths available on request

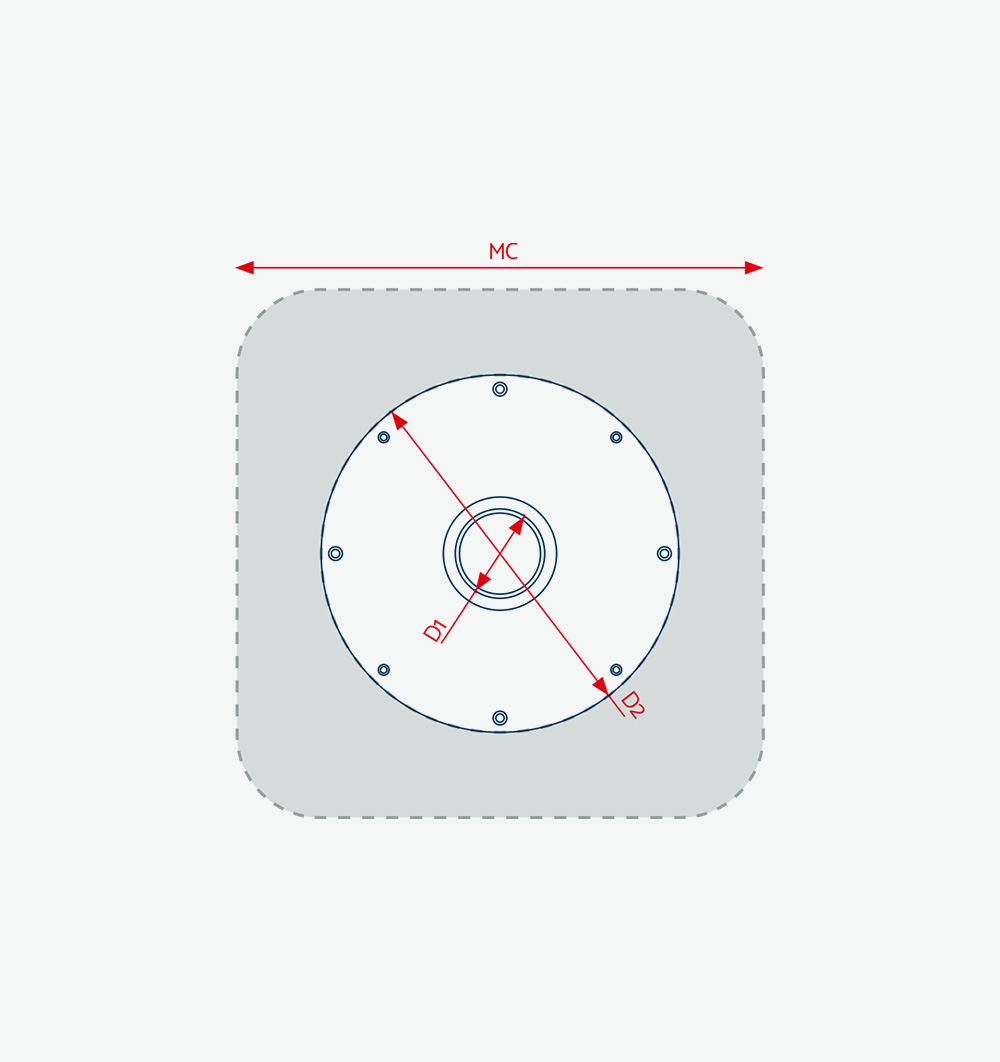

| H1 (with cap) 1 | 654 mm | |
| H2 (without cap) 1 | 620 mm | |
| D1 (D Pipe) | DN 70 / DN 100 / DN 125 / DN 150 | |
| D2 (D Plate) | for size DN 70 = 300 mm for all others = 380 mm |
|
| h1 (with cap) | 354 mm | |
| h2 (without cap) | 320 mm | |
| h | 300 mm | |
| Membrane connection (MC) |
D 75 mm (DN 70) | L 500 x W 500 mm |
| D 110 mm (DN 100) to D 160 mm (DN 150) |
L 580 x W 580 mm | |
1 Special lengths available on request
Delivery in box, PU 1 piece
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
Attention: The processing instructions of the roofing membrane manufacturers must be observed; Materials and material compounds used may be subject to changes
Variants: PVC, FPO/PP and BIT for connection to the respective matching material variant of the roofing membrane. The base unit material is modified to be weatherresistant. UV-stabilised, resistant to heat degradation and oxidative ageing as well as cold impact resistant.
Align the fan on the substrate and secure it in position at four points on the substrate using the holes provided on the edge of the tray. Professionally weld the connection sleeve to the waterproofing membrane all around in accordance with the roofing membrane manufacturer‘s specifications.
| Material | Technical details | Height | Manufacturer | Membrane connection |
|---|---|---|---|---|
| FPO/PP similar to RAL 7044, Silk Grey |
D 75 mm (DN 70) |
654 mm pipe length above / below tray 300 / 320 mm 1 |
Bauder | Thermo- plan T, Silver Grey |
| D 110 mm (DN 100) |
||||
| D 125 mm (DN 125) |
||||
| D 160 mm (DN 150) |
1 Special lengths available on request
| Material | Technical details | Height | Manufacturer | Membrane connection |
|---|---|---|---|---|
| FPO/PP similar to RAL 7044, Silk Grey |
D 75 mm (DN 70) |
654 mm pipe length above / below tray 300 / 320 mm 1 |
Sika | Sarnafil TS77, Beige |
| D 110 mm (DN 100) |
||||
| D 125 mm (DN 125) |
||||
| D 160 mm (DN 150) |
1 Special lengths available on request
| Material | Technical details | Height | Manufacturer | Membrane connection |
|---|---|---|---|---|
| FPO/PP similar to RAL 7044, Silk Grey |
D 75 mm (DN 70) |
654 mm pipe length above / below tray 300 / 320 mm 1 |
Sika | Sarnafil TS77, Window Grey |
| D 110 mm (DN 100) |
||||
| D 125 mm (DN 125) |
||||
| D 160 mm (DN 150) |
1 Special lengths available on request
| Material | Technical details | Height | Manufacturer | Membrane connection |
|---|---|---|---|---|
| FPO/PP similar to RAL 7044, Silk Grey |
D 75 mm (DN 70) |
654 mm pipe length above / below tray 300 / 320 mm 1 |
Soprema | FLAGON Premio, Sand Grey |
| D 110 mm (DN 100) |
||||
| D 125 mm (DN 125) |
||||
| D 160 mm (DN 150) |
1 Special lengths available on request
| H1 (with cap) 1 | 654 mm | |
| H2 (without cap) 1 | 620 mm | |
| D1 (D Pipe) | DN 70 / DN 100 / DN 125 / DN 150 | |
| D2 (D Plate) | for size DN 70 = 300 mm for all others = 380 mm |
|
| h1 (with cap) | 354 mm | |
| h2 (without cap) | 320 mm | |
| h | 300 mm | |
| Membrane connection (MC) |
D 75 mm (DN 70) | L 500 x W 500 mm |
| D 110 mm (DN 100) to D 160 mm (DN 150) |
L 580 x W 580 mm | |
1 Special lengths available on request
Delivery in box, PU 1 piece
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
