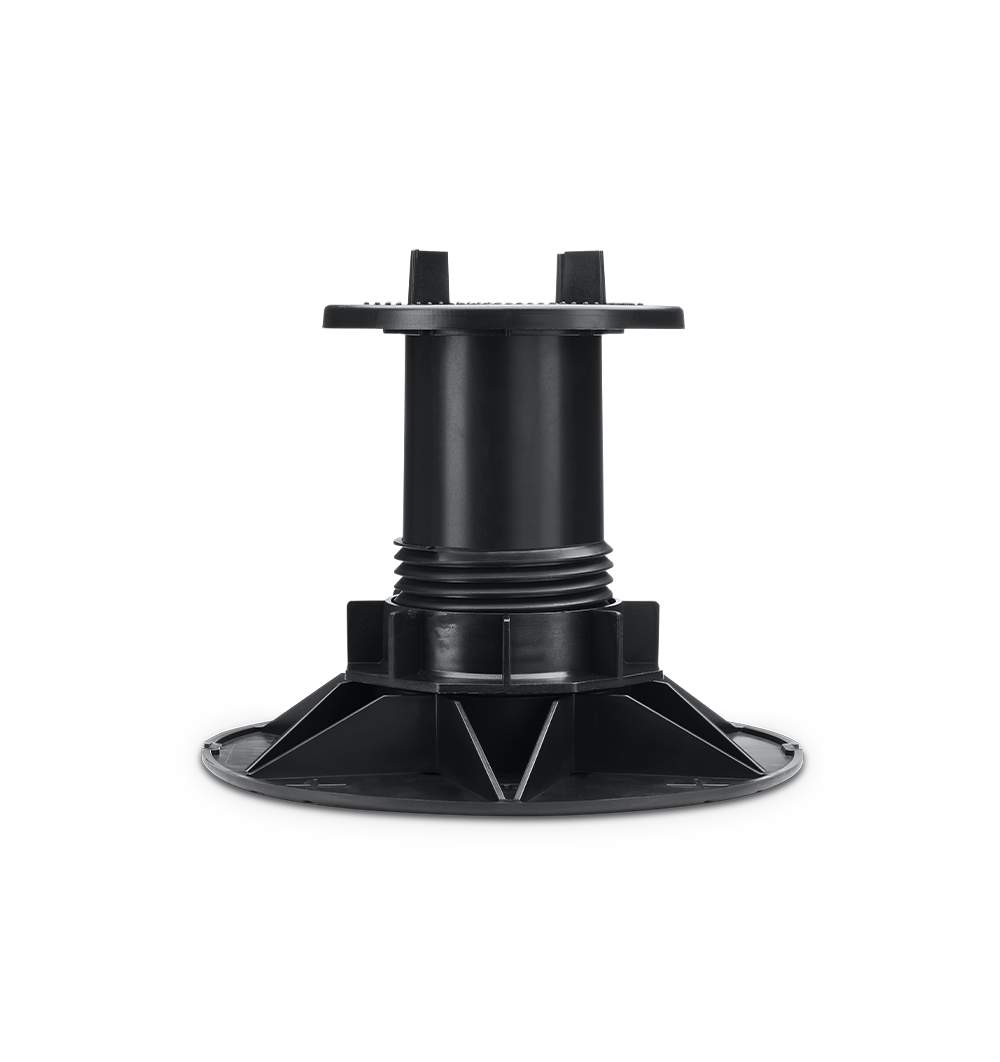

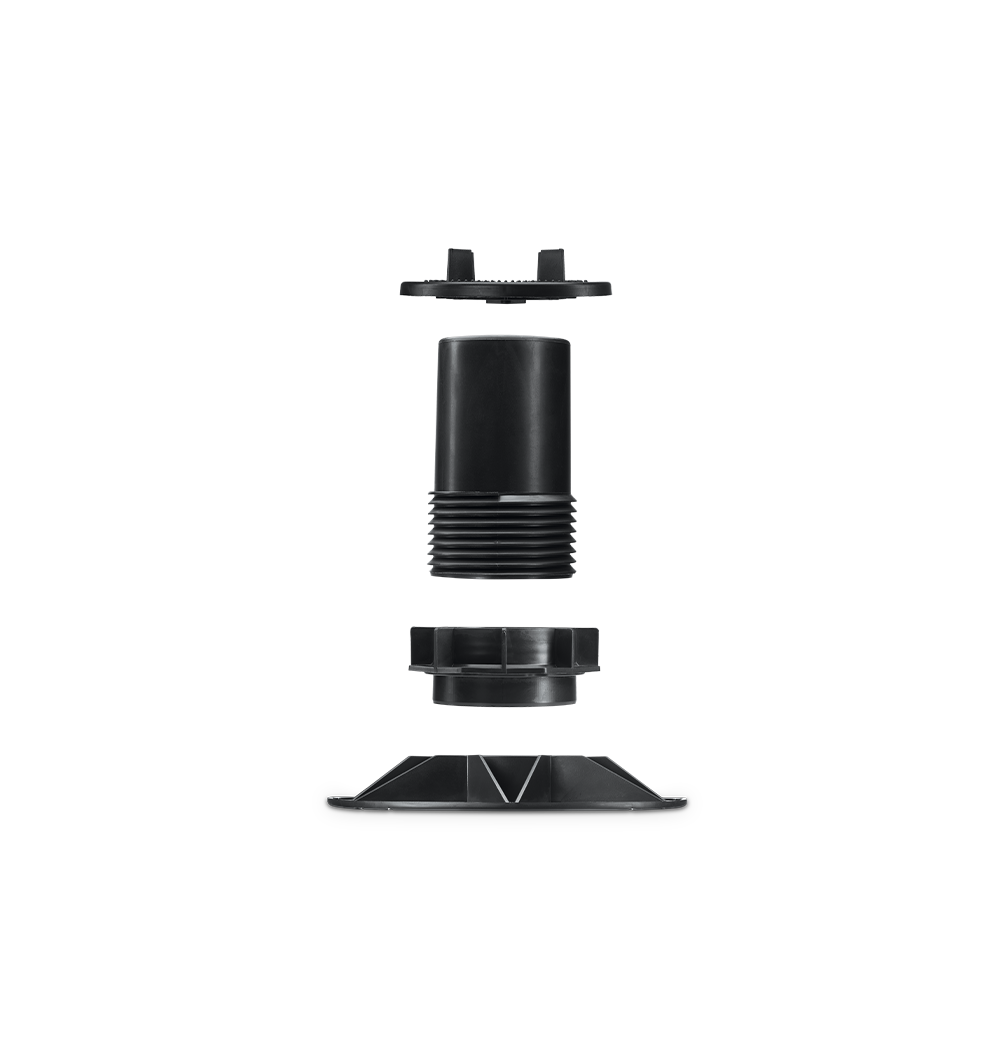

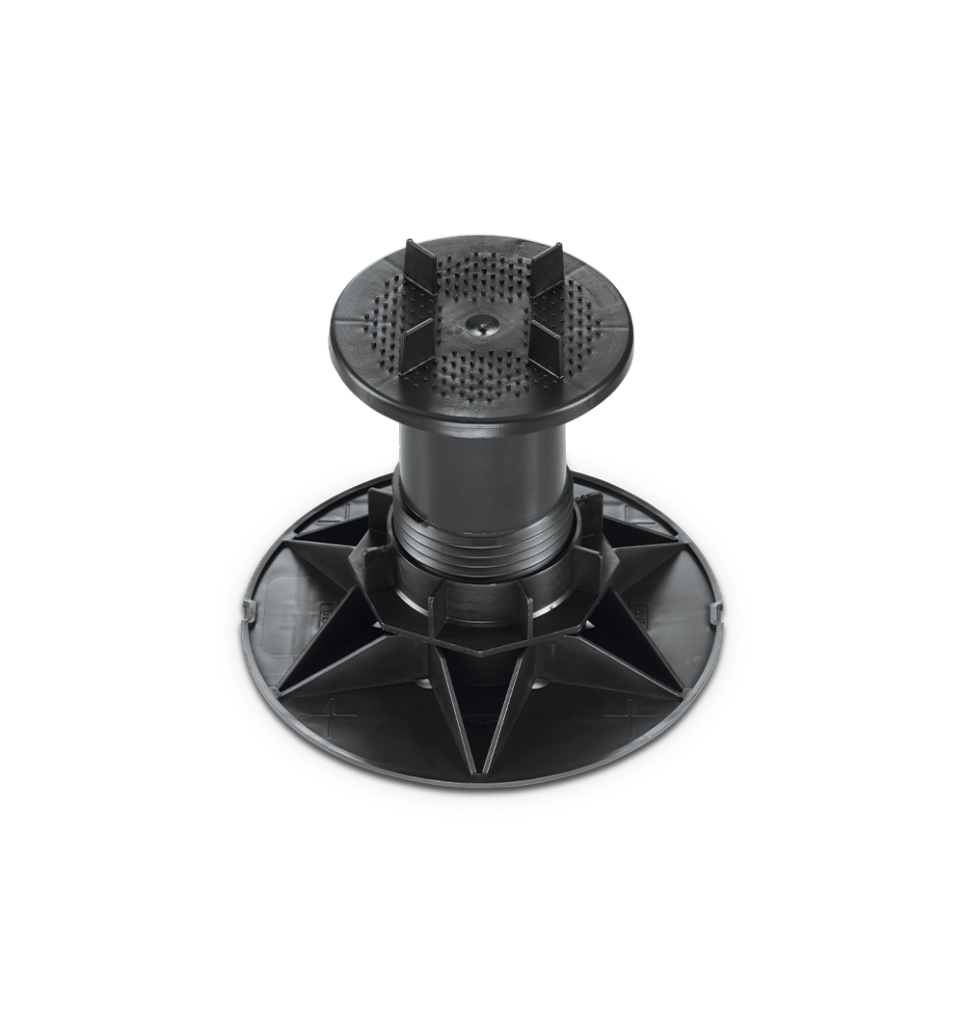

H-MAX support
Freely height-adjustable terrace support system available in several versions for wide height ranges to facilitate quick and safe terrace construction on all substrates
Function
The freely-height adjustable KALA H-MAX terrace support provides the ideal solution for the installation of all surface types, particularly for stone slabs and boardwalk finishes. The height adjustment and optional equalizing elements permit easy levelling of surfaces and slopes. In combination with the pressure disc, which is available as an accessory, the KALA HMAX support forms a support system for direct installation on seals found on flat roofs, for instance. Additional protective mats must be fitted in areas frequented by the public, such as entrances to public buildings, cafeterias, etc.
Material
KALA terrace support systems are constructed from black FPO/PP: A weatherproof, UV-stabilized and highly low-temperature impact resistant plastic.
Versions
| Height | Diameter |
|---|---|
| 65 – 100 mm | Joint divider 3 mm, pressure disc D 205 mm |
| 95 – 130 mm | |
| 125 – 160 mm | |
| 155 – 190 mm | |
| 185 – 220 mm |
Examples
Technical drawings
| Technical data | ||||||
|---|---|---|---|---|---|---|
| 65-100 | 95-130 | 125-160 | 155-190 | 185-220 | ||
| D1 | 208 | mm | ||||
| D2 | 120 | |||||
| H | 65-100 | 95-130 | 125-160 | 155-190 | 185-220 | |
| h | 18 | |||||
| b | 17 | |||||
| Ft | 3 | |||||
Downloads
Package units
Supplied in cartons, each containing 25 units
Tailored to meet your requirements
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
Function
The freely-height adjustable KALA H-MAX terrace support provides the ideal solution for the installation of all surface types, particularly for stone slabs and boardwalk finishes. The height adjustment and optional equalizing elements permit easy levelling of surfaces and slopes. In combination with the pressure disc, which is available as an accessory, the KALA HMAX support forms a support system for direct installation on seals found on flat roofs, for instance. Additional protective mats must be fitted in areas frequented by the public, such as entrances to public buildings, cafeterias, etc.
Material
KALA terrace support systems are constructed from black FPO/PP: A weatherproof, UV-stabilized and highly low-temperature impact resistant plastic.
Versions
| Height | Diameter |
|---|---|
| 65 – 100 mm | Joint divider 3 mm, pressure disc D 205 mm |
| 95 – 130 mm | |
| 125 – 160 mm | |
| 155 – 190 mm | |
| 185 – 220 mm |
Examples
Technical drawings
| Technical data | ||||||
|---|---|---|---|---|---|---|
| 65-100 | 95-130 | 125-160 | 155-190 | 185-220 | ||
| D1 | 208 | mm | ||||
| D2 | 120 | |||||
| H | 65-100 | 95-130 | 125-160 | 155-190 | 185-220 | |
| h | 18 | |||||
| b | 17 | |||||
| Ft | 3 | |||||
Downloads
Package units
Supplied in cartons, each containing 25 units
Tailored to meet your requirements
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
Matching accessories
KALA pressure discs for terrace support systems
Terrace sliding support system substrate for quick and precise terrace construction
Equaliser disc, splits into quarters
3 mm terrace support system height increasing element for quick terrace construction
ProSilent equaliser disc for terrace support systems, splits into quarters
Insulation element to reduce the sound of footsteps, noise and level heights for all KALA support systems

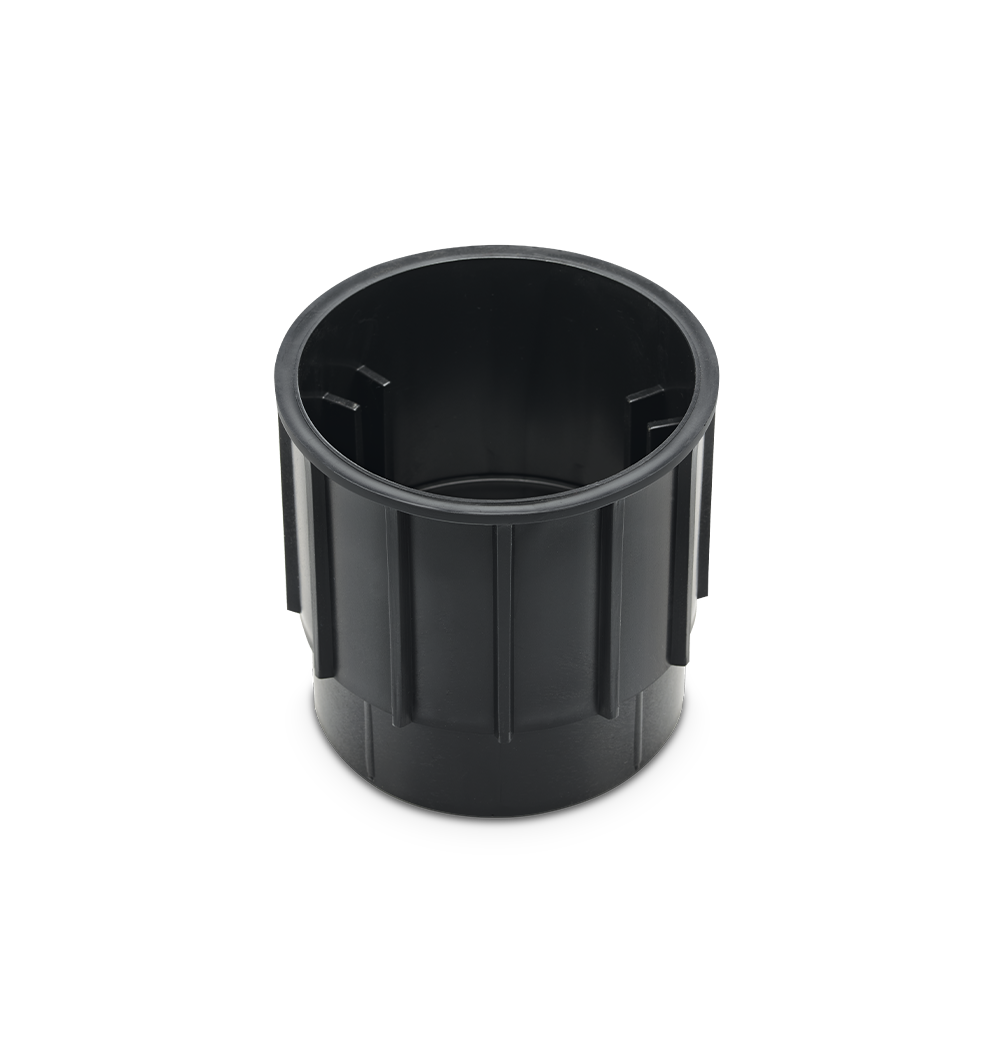

Pipe extension for H-MAX support system and H-MAX MultiLevel support system
