Height-adjustable terrace support system
Adjustable support system available in two versions: H1 (28-42 mm) and H2 (40-70 mm). Optional pressure disc for quick and precise patio construction on sealed surfaces.
Function
The KALA terrace support, which is height-adjustable in a number of precise increments provides the ideal solution for the installation of all surface types, particularly for stone slabs and boardwalk finishes. The height adjustment and optional equalizing elements permit easy levelling of surfaces and slopes. In combination with the pressure disc, which is available as an accessory, the KALA support forms a sliding support system for direct installation on seals. Additional protective mats must be fitted in areas frequented by the public, such as entrances to public buildings, cafeterias, etc.
Material
KALA terrace support systems are constructed from black FPO/PP: A weatherproof, UV-stabilized and highly low-temperature impact resistant plastic.
Version
Height-adjustable terrace support system H1
| Height | Diameter |
|---|---|
| 28 – 42 mm | Joint divider 3 mm, D 120 mm |
| Joint divider 4 mm, D 120 mm |
|
| Without joint divider, D 120 mm |
Version
Height-adjustable terrace support system H2
| Height | Diameter |
|---|---|
| 40 – 70 mm | Joint divider 3 mm, D 120 mm |
| Joint divider 4 mm, D 120 mm |
|
| Without joint divider, D 120 mm |
Examples

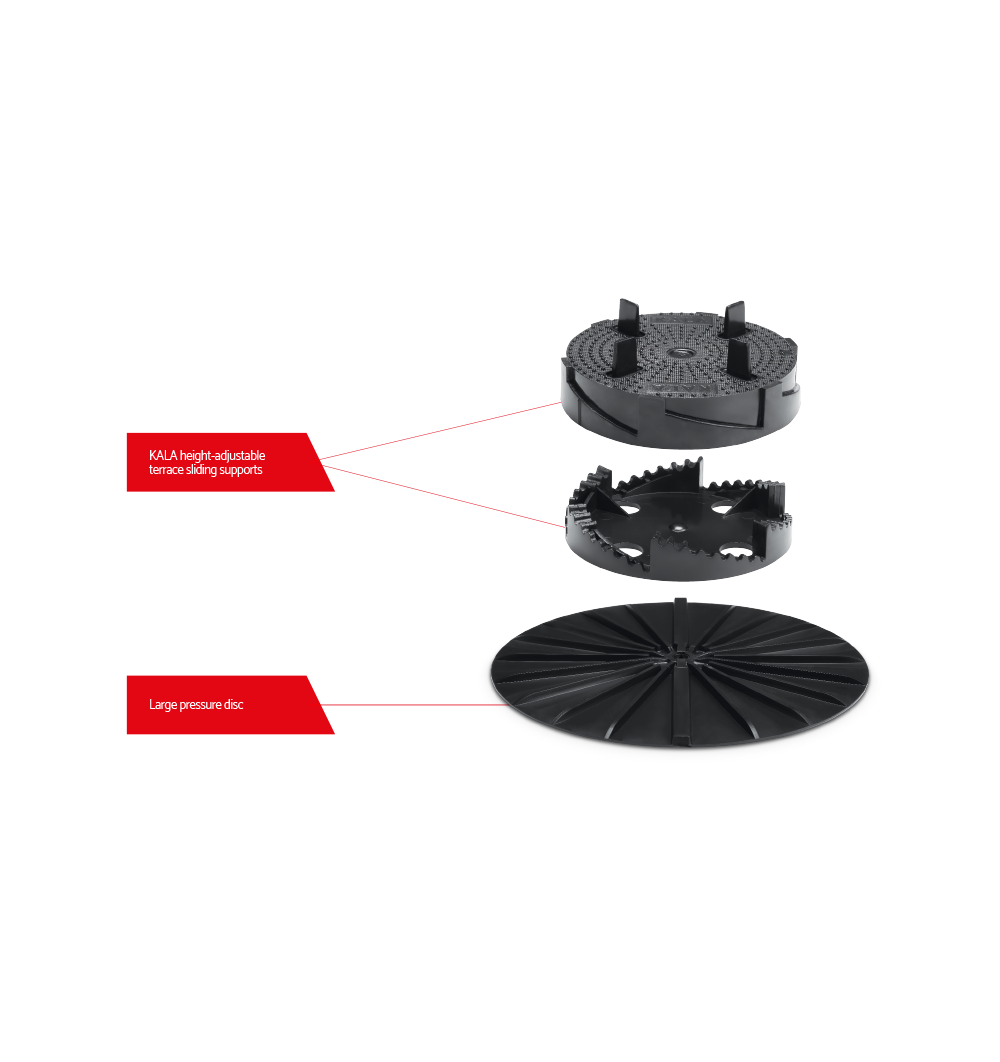

Height-adjustable terrace support system H1
Examples

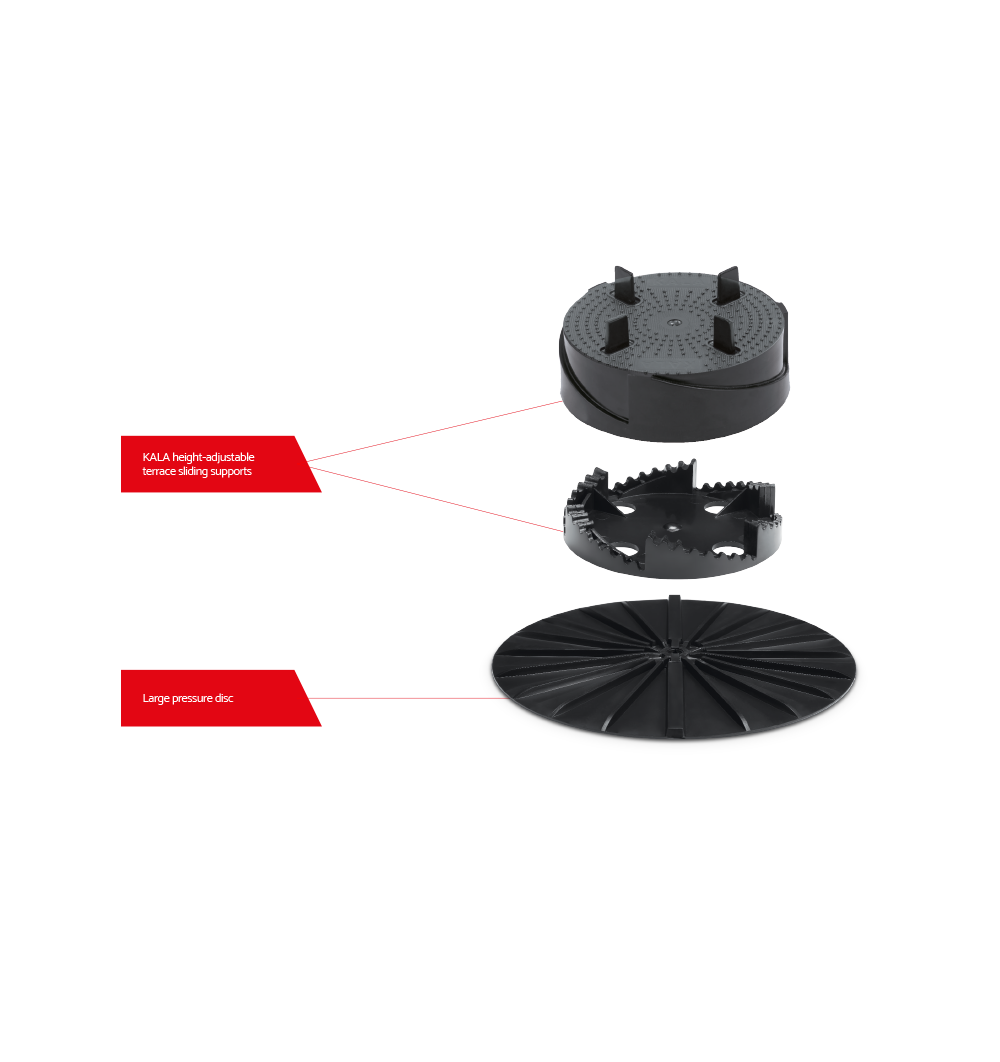

Height-adjustable terrace support system H2

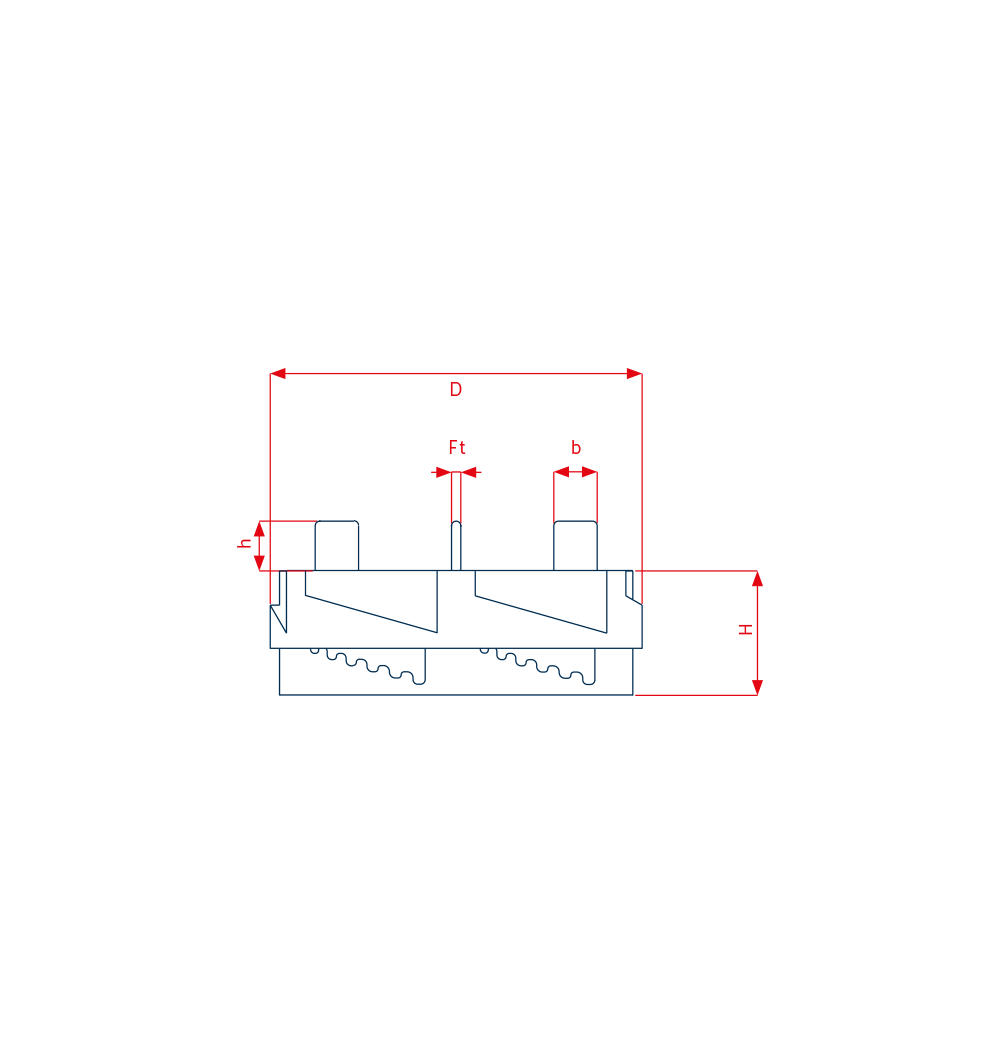

Technical drawings
| Technical data | |||
|---|---|---|---|
| H1 | H2 | ||
| D | 120 | mm | |
| D2 (pressure disc | 250 | ||
| Ft | 3, alternatively 4 | ||
| H | 28 – 42 | 40 – 70 | |
| h | 16 | ||
| b | 14 | ||
Downloads
Package units
Supplied in cartons, each containing 50 units
