Rectangular scupper BIT
NEW
Moulded part for horizontal drainage or emergency drainage through the parapet. When installing, the exact installation point must be chosen depending on the water height.
Notice
Attention: The processing instructions of the roofing membrane manufacturers must be observed; Materials and material compounds used may be subject to changes
Material
BIT – Version with weather-stably modified base unit and laminated bitumen connection sleeve. A stainless steel flange connection is used to secure the VaporBase. The base unit has been modified to make it weather-resistant. UV-stabilised, resistant to heat degradation and oxidative ageing as well as cold impact resistant. With a thickness of 4 mm, the connection sleeve consists of talc-coated elastomer bitumen with an integrated carrier insert, making it ideal for forming a reliable connection with bitumen roofing membranes.
Versions
| Material | Channel = W x H x L 1 | Technical details 2 |
|---|---|---|
| BIT Sanded |
120 x 60 x L 300 mm | With bitumen connection sleeve |
| 120 x 60 x L 600 mm | ||
| 180 x 80 x L 300 mm | ||
| 180 x 80 x L 600 mm | ||
| 300 x 100 x L 300 mm | ||
| 300 x 100 x L 600 mm | ||
| 500 x 100 x L 300 mm | ||
| 500 x 100 x L 600 mm |
1 Special lengths available on request
2 Also available with accumulation ring
Examples
Drainage capacity
LGA-certified performance data
| Channel = W x H 1 | Attenuation depth | |
|---|---|---|
| 35 mm | 65 mm | |
| 120 x 60 mm | 1.30 l/s | 3.50 l/s |
| 180 x 80 mm | 1.90 l/s | 5.00 l/s |
| 300 x 100 mm | 3.00 l/s | 7.80 l/s |
| 500 x 100 mm | 5.50 l/s | 13.40 l/s |
1 Special lengths available on request
Bitumen connection (BC)
| Dimensions for | Dimensions (L x W) |
|---|---|
| 120 x 60 mm | 520 x 471 mm |
| 180 x 80 mm | 580 x 491 mm |
| 300 x 100 mm | 700 x 500 mm |
| 500 x 100 mm | 900 x 500 mm |

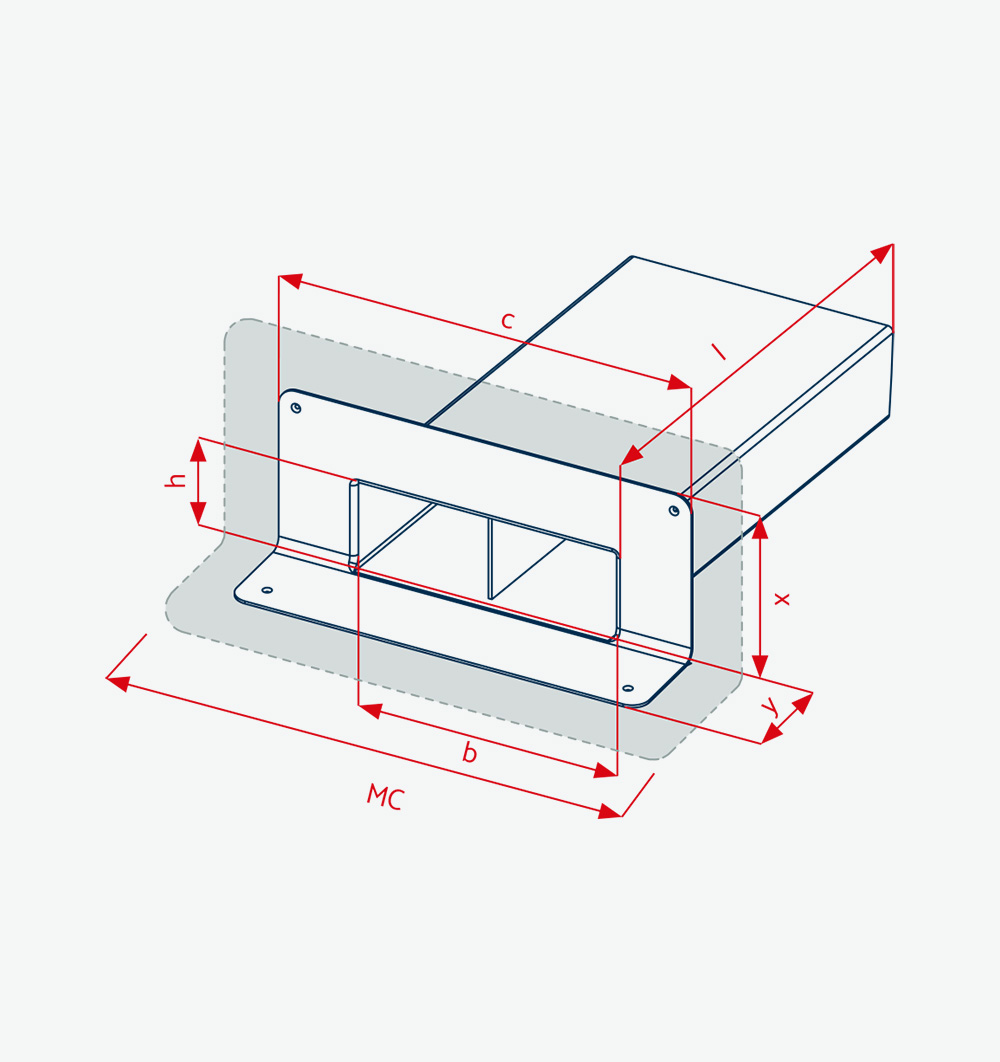

Technical drawings
Technical data
| Channel = W x H | b | h | c | x | y |
|---|---|---|---|---|---|
| 120 x 60 mm | 120 mm | 60 mm | 308 mm | 165 mm | 115 mm |
| 180 x 80 mm | 180 mm | 80 mm | 368 mm | 185 mm | 115 mm |
| 300 x 100 mm | 300 mm | 100 mm | 488 mm | 200 mm | 115 mm |
| 500 x 100 mm | 500 mm | 100 mm | 688 mm | 200 mm | 115 mm |
| Pipe inclination each 5° | |||||
Available sizes (W x H – inner dimensions)
- 120 x 60 mm
- 180 x 80 mm
- 300 x 100 mm
- 500 x 100 mm
Available lengths (l)
- 300 mm
- 600 mm
Special lengths available on request
Packaging units
Delivery in box, PU 1 piece
Downloads
Tailored to meet your requirements
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
Notice
Attention: The processing instructions of the roofing membrane manufacturers must be observed; Materials and material compounds used may be subject to changes
Material
BIT – Version with weather-stably modified base unit and laminated bitumen connection sleeve. A stainless steel flange connection is used to secure the VaporBase. The base unit has been modified to make it weather-resistant. UV-stabilised, resistant to heat degradation and oxidative ageing as well as cold impact resistant. With a thickness of 4 mm, the connection sleeve consists of talc-coated elastomer bitumen with an integrated carrier insert, making it ideal for forming a reliable connection with bitumen roofing membranes.
Versions
| Material | Channel = W x H x L 1 | Technical details 2 |
|---|---|---|
| BIT Sanded |
120 x 60 x L 300 mm | With bitumen connection sleeve |
| 120 x 60 x L 600 mm | ||
| 180 x 80 x L 300 mm | ||
| 180 x 80 x L 600 mm | ||
| 300 x 100 x L 300 mm | ||
| 300 x 100 x L 600 mm | ||
| 500 x 100 x L 300 mm | ||
| 500 x 100 x L 600 mm |
1 Special lengths available on request
2 Also available with accumulation ring
Examples
Drainage capacity
LGA-certified performance data
| Channel = W x H 1 | Attenuation depth | |
|---|---|---|
| 35 mm | 65 mm | |
| 120 x 60 mm | 1.30 l/s | 3.50 l/s |
| 180 x 80 mm | 1.90 l/s | 5.00 l/s |
| 300 x 100 mm | 3.00 l/s | 7.80 l/s |
| 500 x 100 mm | 5.50 l/s | 13.40 l/s |
1 Special lengths available on request
Bitumen connection (BC)
| Dimensions for | Dimensions (L x W) |
|---|---|
| 120 x 60 mm | 520 x 471 mm |
| 180 x 80 mm | 580 x 491 mm |
| 300 x 100 mm | 700 x 500 mm |
| 500 x 100 mm | 900 x 500 mm |
Technical drawings
Technical data
| Channel = W x H | b | h | c | x | y |
|---|---|---|---|---|---|
| 120 x 60 mm | 120 mm | 60 mm | 308 mm | 165 mm | 115 mm |
| 180 x 80 mm | 180 mm | 80 mm | 368 mm | 185 mm | 115 mm |
| 300 x 100 mm | 300 mm | 100 mm | 488 mm | 200 mm | 115 mm |
| 500 x 100 mm | 500 mm | 100 mm | 688 mm | 200 mm | 115 mm |
| Pipe inclination each 5° | |||||
Available sizes (W x H – inner dimensions)
- 120 x 60 mm
- 180 x 80 mm
- 300 x 100 mm
- 500 x 100 mm
Available lengths (l)
- 300 mm
- 600 mm
Special lengths available on request
Packaging units
Delivery in box, PU 1 piece
Downloads
Tailored to meet your requirements
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
