KALA Terrassen-Lager H-MAX MultiLevel

Terrace support system H-MAX MultiLevel

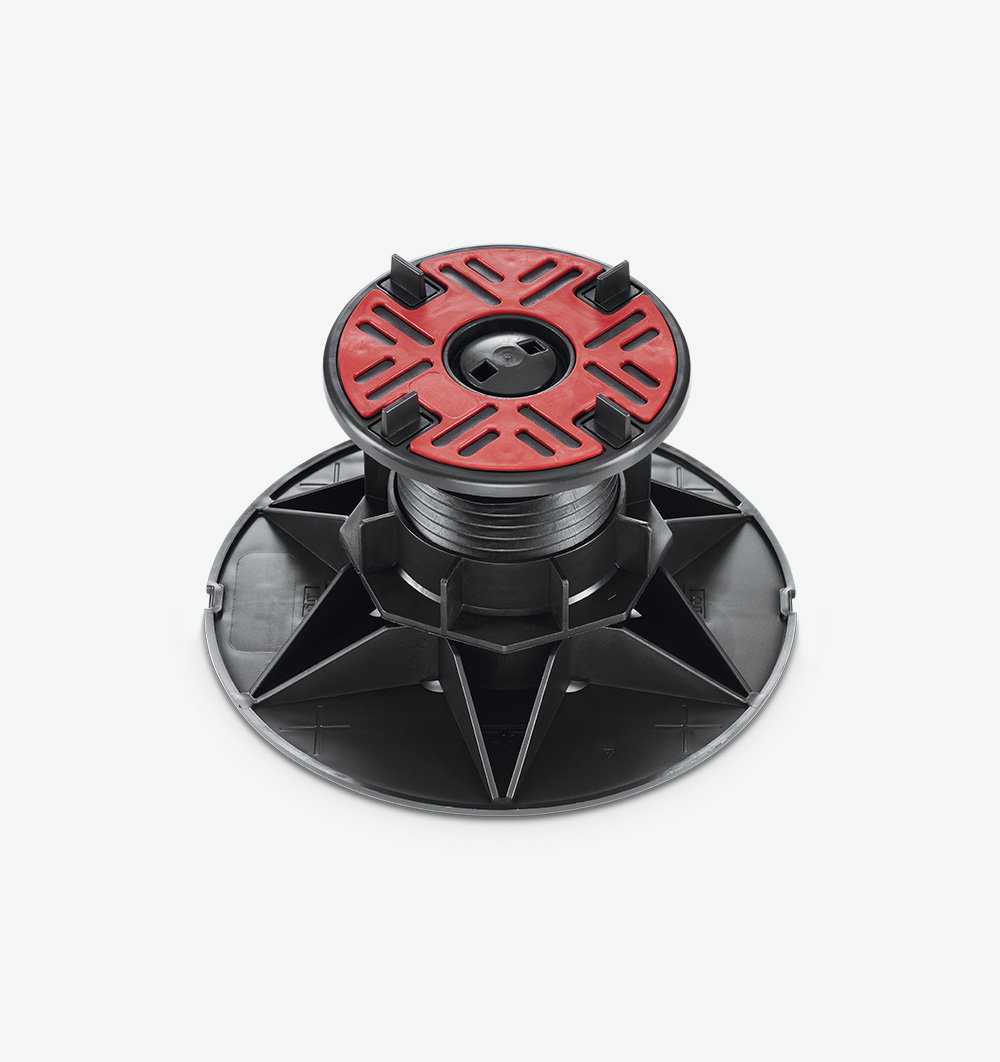

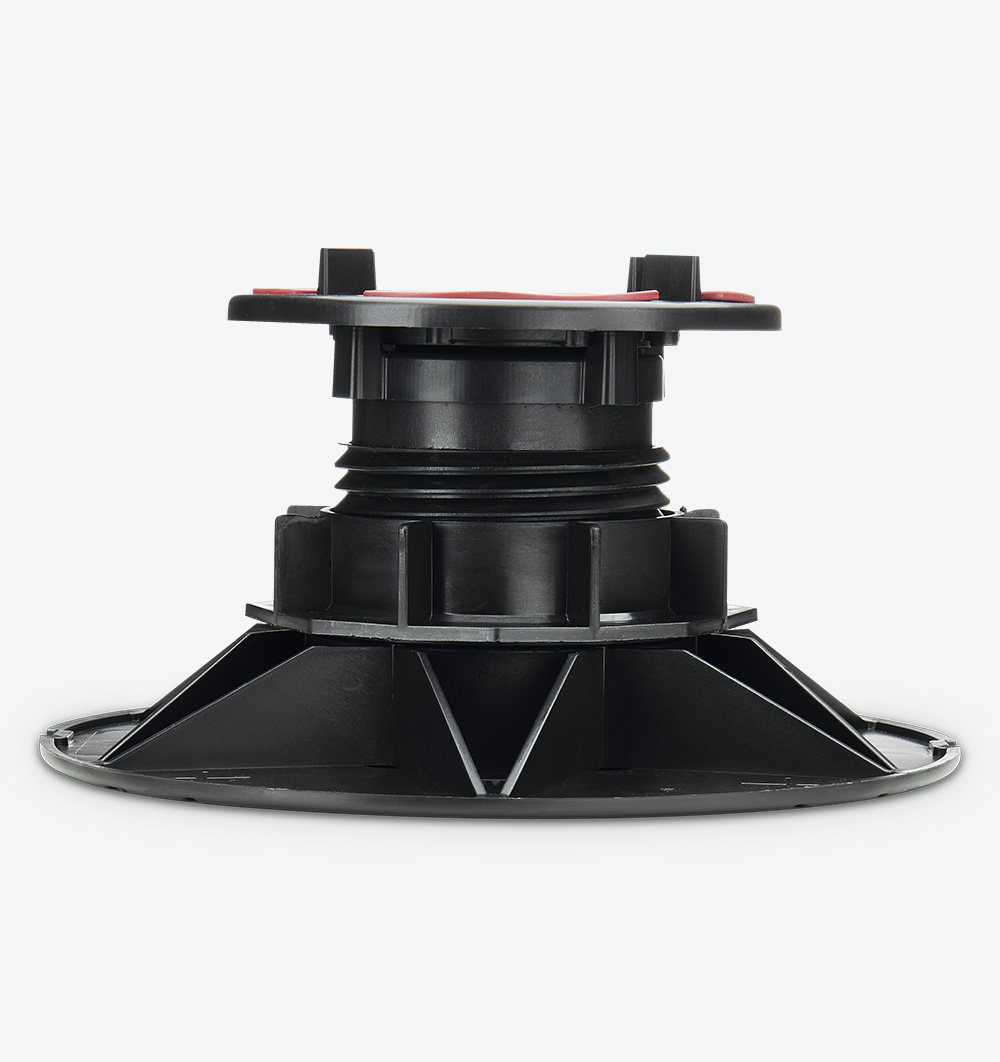

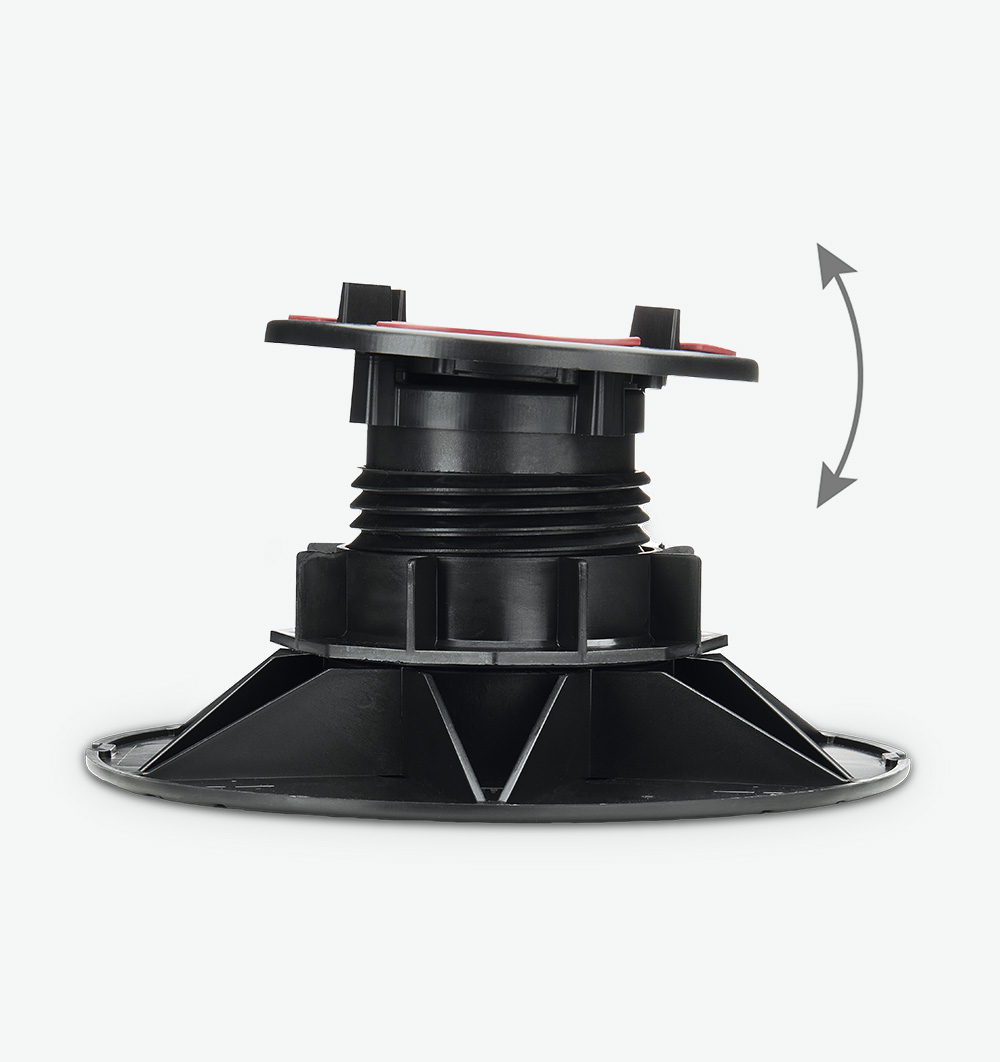

The H-MAX MultiLevel is a height-adjustable terrace support system with an additional, movable levelling head. All types of coverings – wood, stone or ceramic – can be easily laid with it. The levelling head can be moved up to 5° to securely compensate for steep gradients and unevenness. It can be used for direct laying on the waterproofing. In public areas with high footfall, such as cafeterias and visitor terraces, additional protective mats must be placed underneath.

Contact us today

Versions

Height Diameter
62 – 82 mm Joint spacer tabs 3 mm,
pressure disc D 200 mm
77 – 112 mm
107 – 142 mm
137 – 227 mm
  • Joint spacer widths 3 mm
  • Joint spacer tabs detachable
  • Integrated notch for cutting off the base in the edge area
  • Rubber bearing for noise reduction

Examples

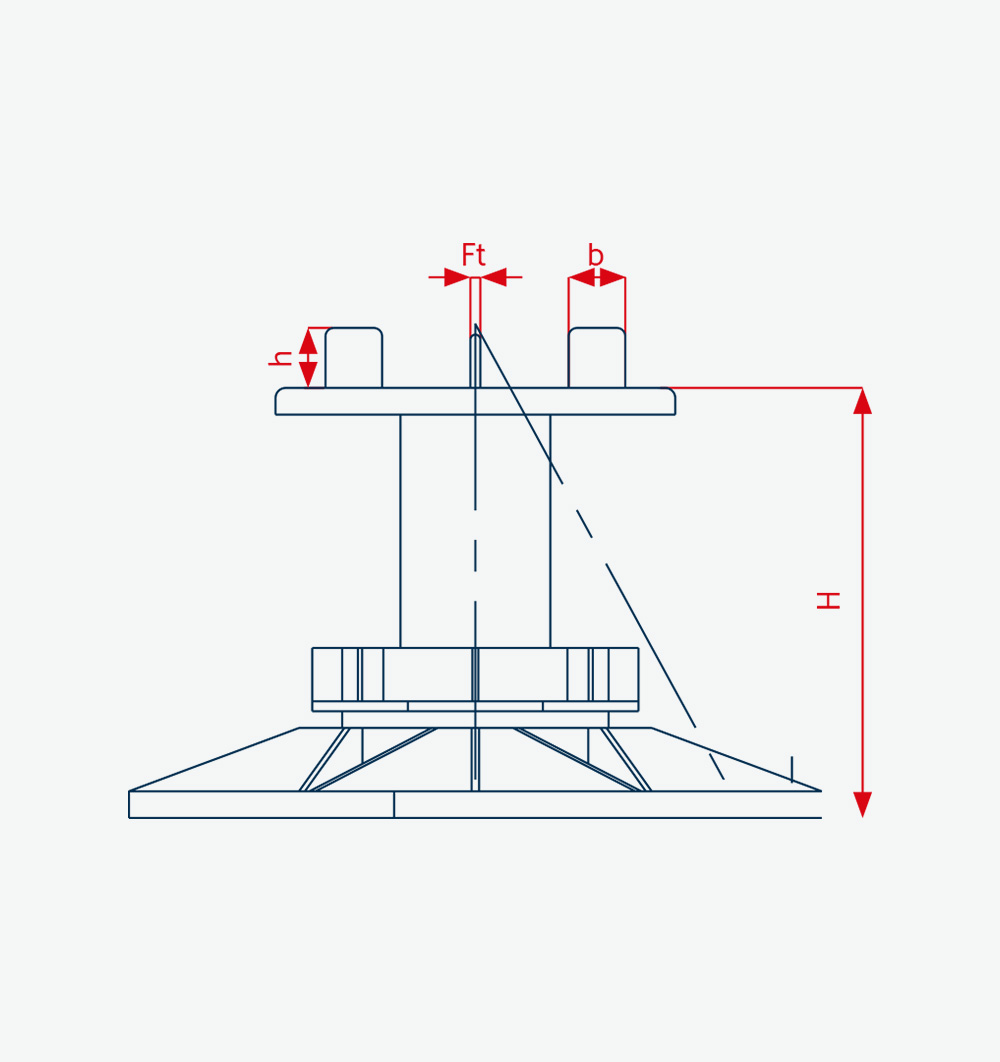

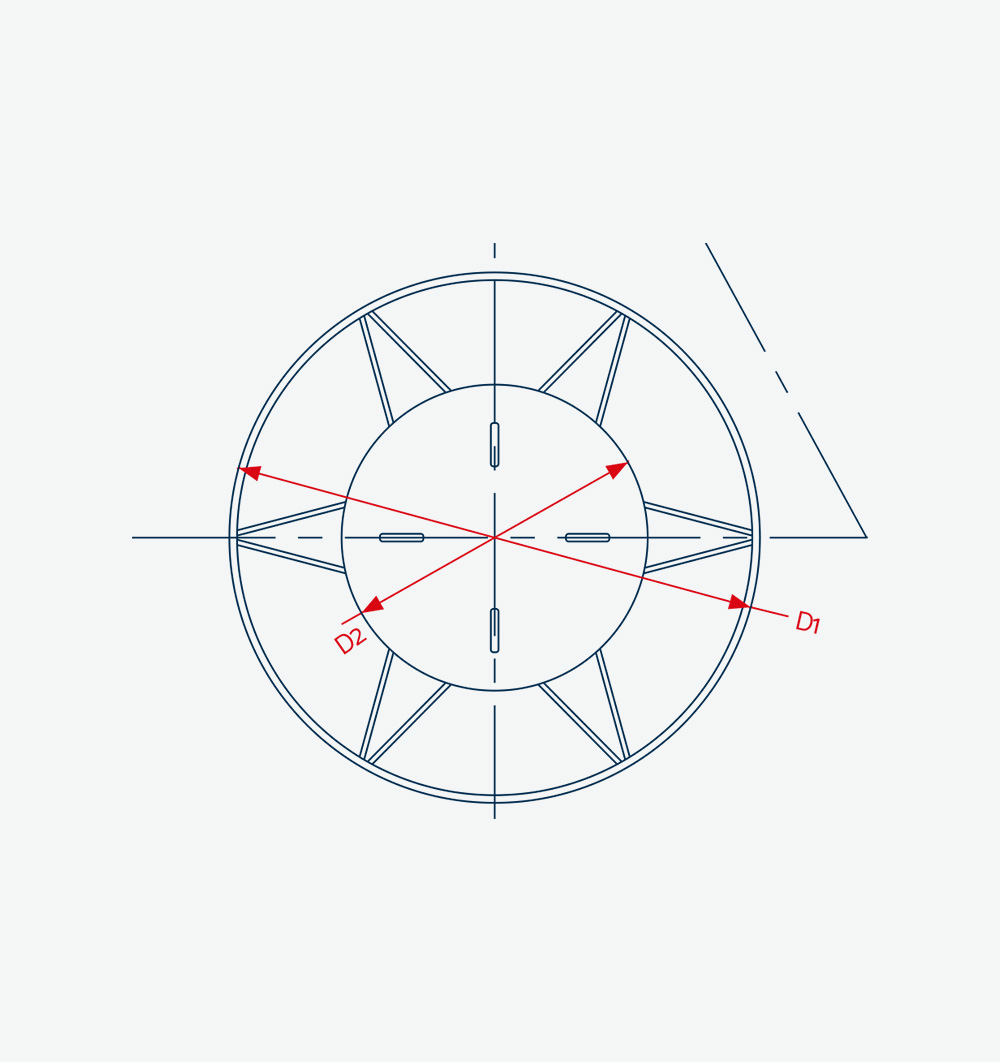

Technical drawings

Technical data

62 – 82 mm 77 – 112 mm 107 – 142 mm 137 – 227 mm
D1 200 mm 200 mm 200 mm 200 mm
D2 120 mm 120 mm 120 mm 120 mm
H 62 – 82 mm 77 – 112 mm 107 – 142 mm 137 – 227 mm
h 10 mm 10 mm 10 mm 10 mm
b 13 mm 13 mm 13 mm 13 mm
Ft 3 mm 3 mm 3 mm 3 mm

Packaging units

Delivery in box, PU 25 pieces

Downloads

Tailored to meet your requirements

Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!

contact

Height Diameter
62 – 82 mm Joint spacer tabs 3 mm,
pressure disc D 200 mm
77 – 112 mm
107 – 142 mm
137 – 227 mm
  • Joint spacer widths 3 mm
  • Joint spacer tabs detachable
  • Integrated notch for cutting off the base in the edge area
  • Rubber bearing for noise reduction
62 – 82 mm 77 – 112 mm 107 – 142 mm 137 – 227 mm
D1 200 mm 200 mm 200 mm 200 mm
D2 120 mm 120 mm 120 mm 120 mm
H 62 – 82 mm 77 – 112 mm 107 – 142 mm 137 – 227 mm
h 10 mm 10 mm 10 mm 10 mm
b 13 mm 13 mm 13 mm 13 mm
Ft 3 mm 3 mm 3 mm 3 mm

Delivery in box, PU 25 pieces

Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!

contact
