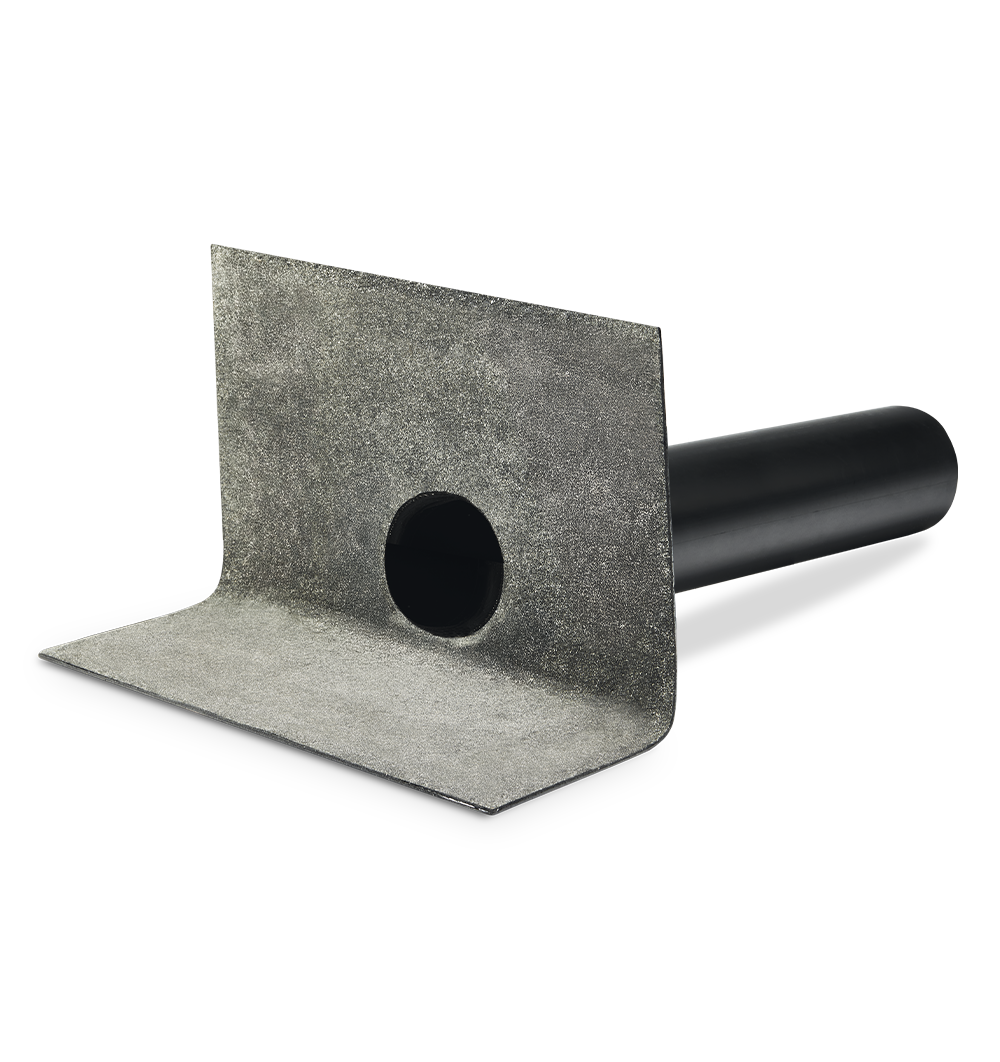

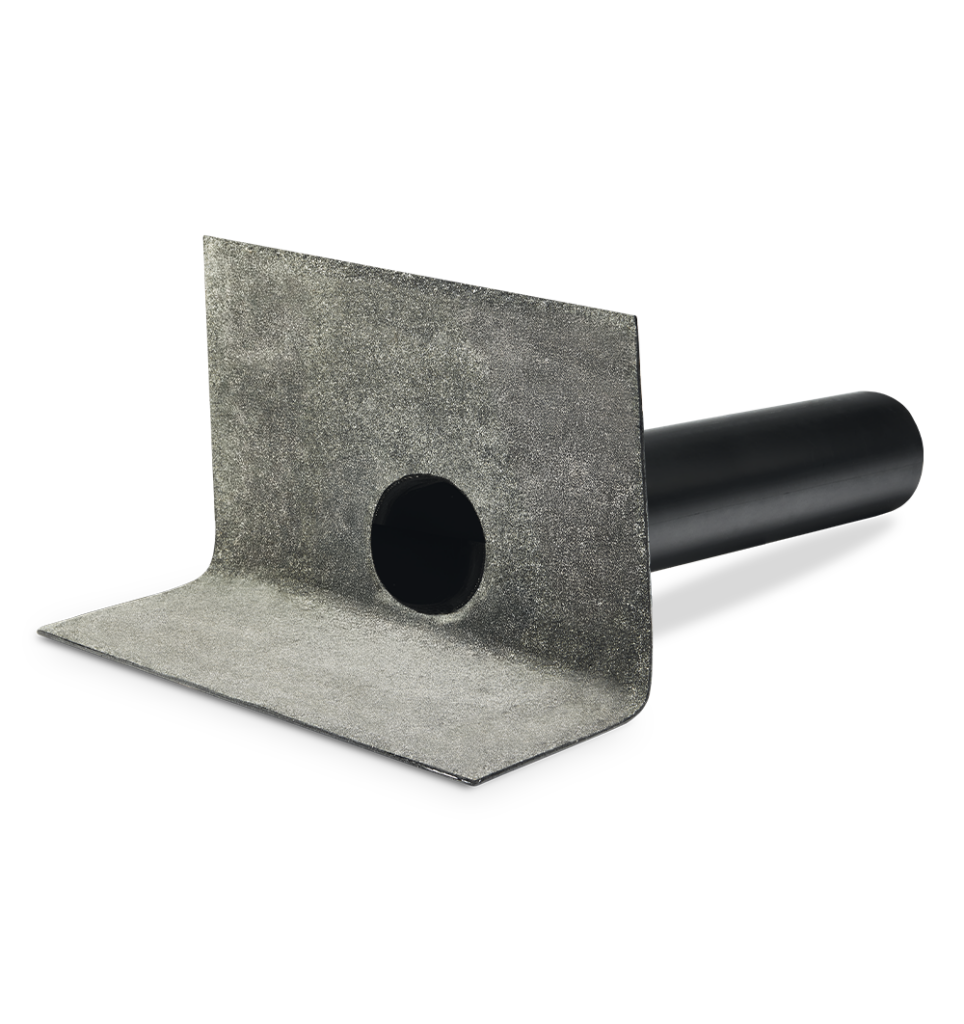

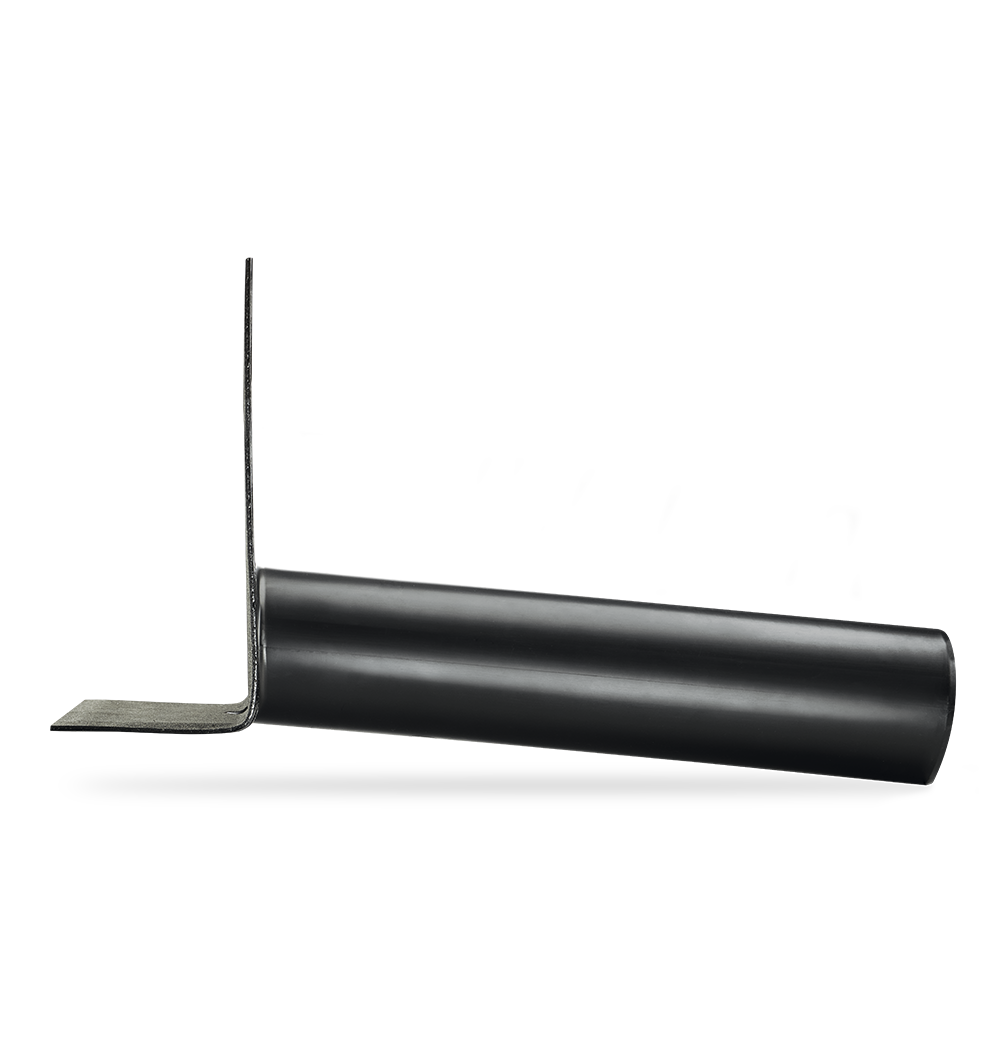

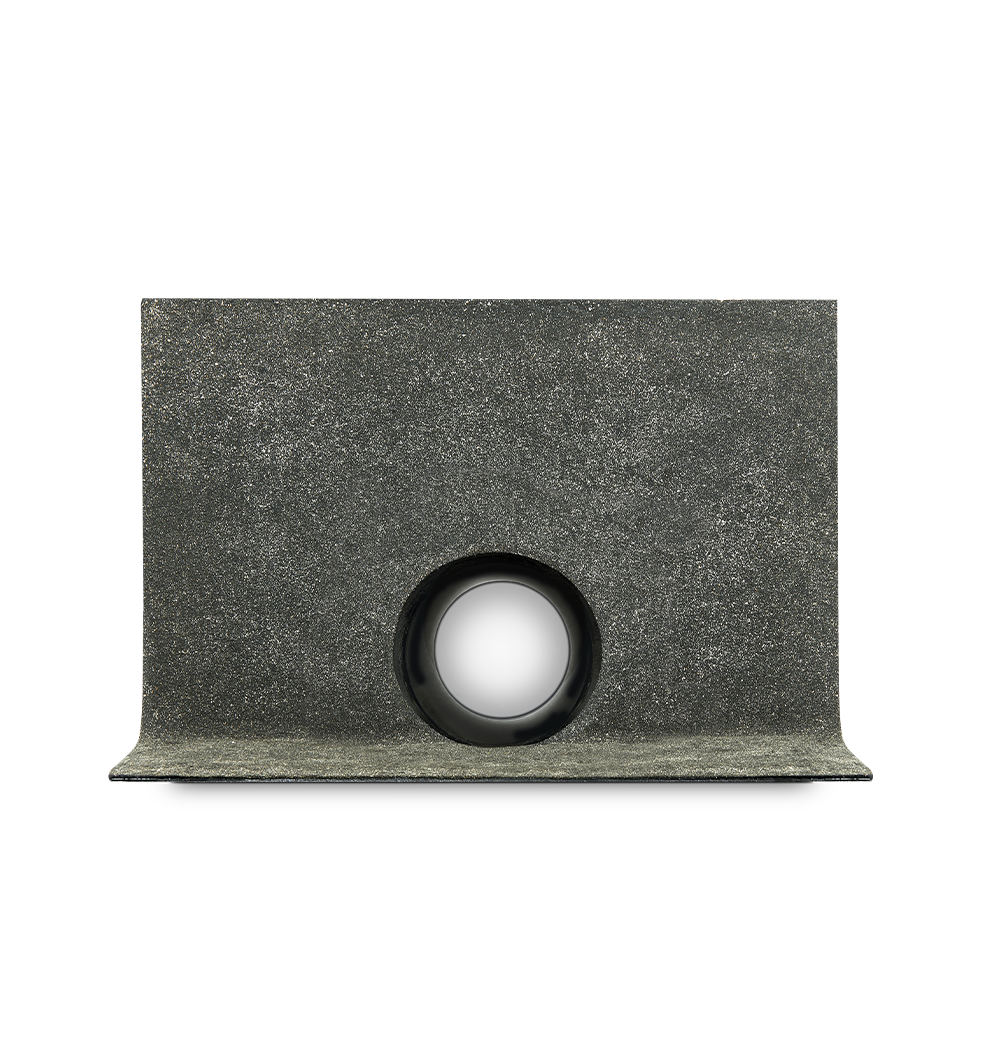

Scupper BIT XL, round
Variant with a large bitumen sleeve – for easier connection to the roofing membrane.
Function
Molded part with a laminated bitumen connection sleeve for horizontal drainage through the parapet. The large dimensions of 470 x 500 mm ensure a secure connection in all installation scenarios. Installation with connection to a piping system for water discharge or free outflow. When used for emergency drainage, the exact installation point must be determined based on the water level.
Material
FPO/PP modified with a permanently laminated bitumen connection sleeve. The materials are modified to be weather-resistant: UV-stabilized, resistant to thermal degradation and oxidative aging, as well as impact-resistant in cold temperatures.
Scupper BIT XL, round
Alternatively also available with accumulation ring
| Material | Diameter | Technical information |
|---|---|---|
| BIT sandet | D 50 mm (DN 50) |
With bitumen sleeve (470 x 500 mm), Pipe length 480 mm 1 |
| D 63 mm | ||
| D 75 mm (DN 70) |
||
| D 90 mm | ||
| D 110 mm (DN 100) |
||
| D 125 mm (DN 125) 2 |
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
1 Special lengths available on request
2 Attention: Please note that the technical dimensions and visual representation may differ from the illustration
Examples
Drainage performance
LGA-certified characteristics
| Diameter | Accumulation height | |
|---|---|---|
| 35 mm | 65 mm | |
| D 50 mm (DN 50) |
0.51 litre/sec. | 1.31 litre/sec. |
| D 75 mm (DN 70) |
0.65 litre/sec. | 1.65 litre/sec. |
| D 90 mm | 0.65 litre/sec. | 1.90 litre/sec. |
| D 110 mm (DN 100) |
1.00 litre/sec. | 2.65 litre/sec. |
| D 125 mm (DN 125)1 |
1.00 litre/sec. | 2.80 litre/sec. |
1 Attention: Please note that the technical dimensions and visual representation may differ from the illustration

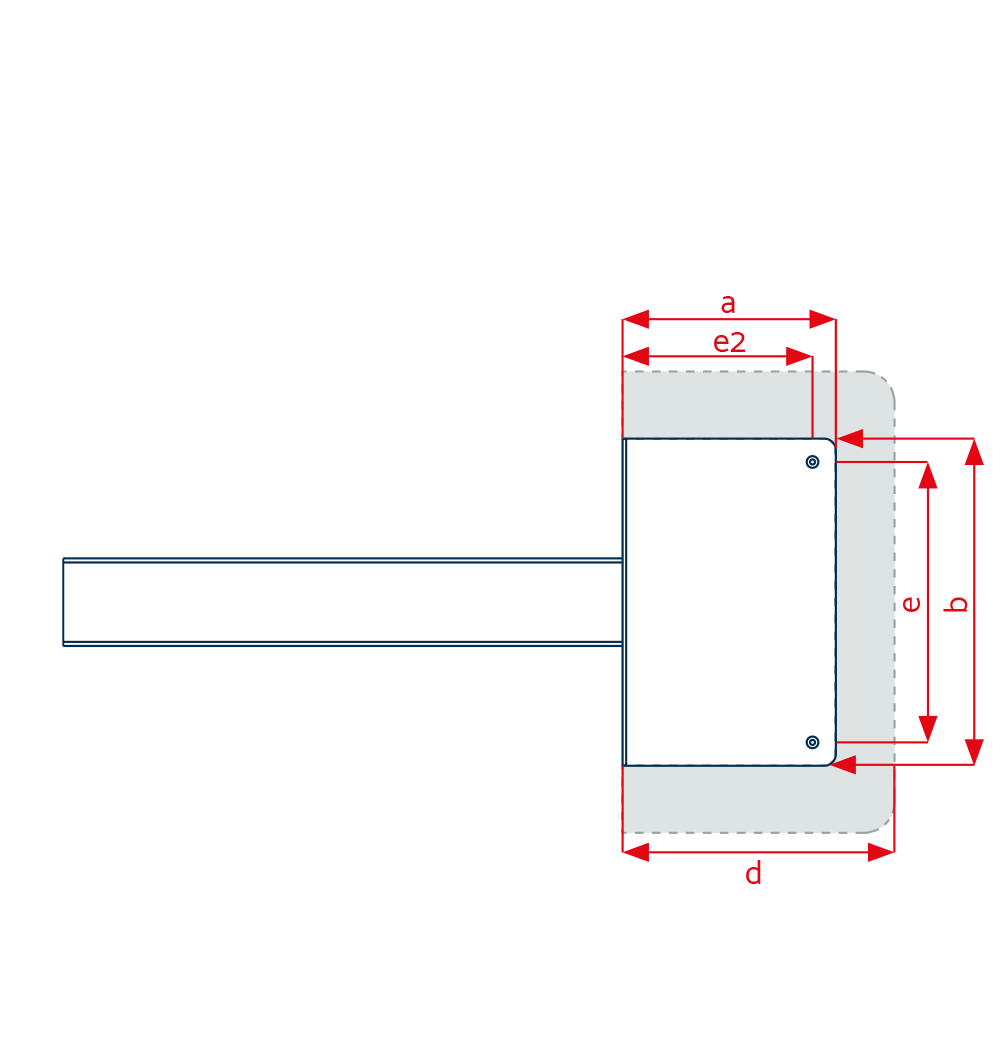

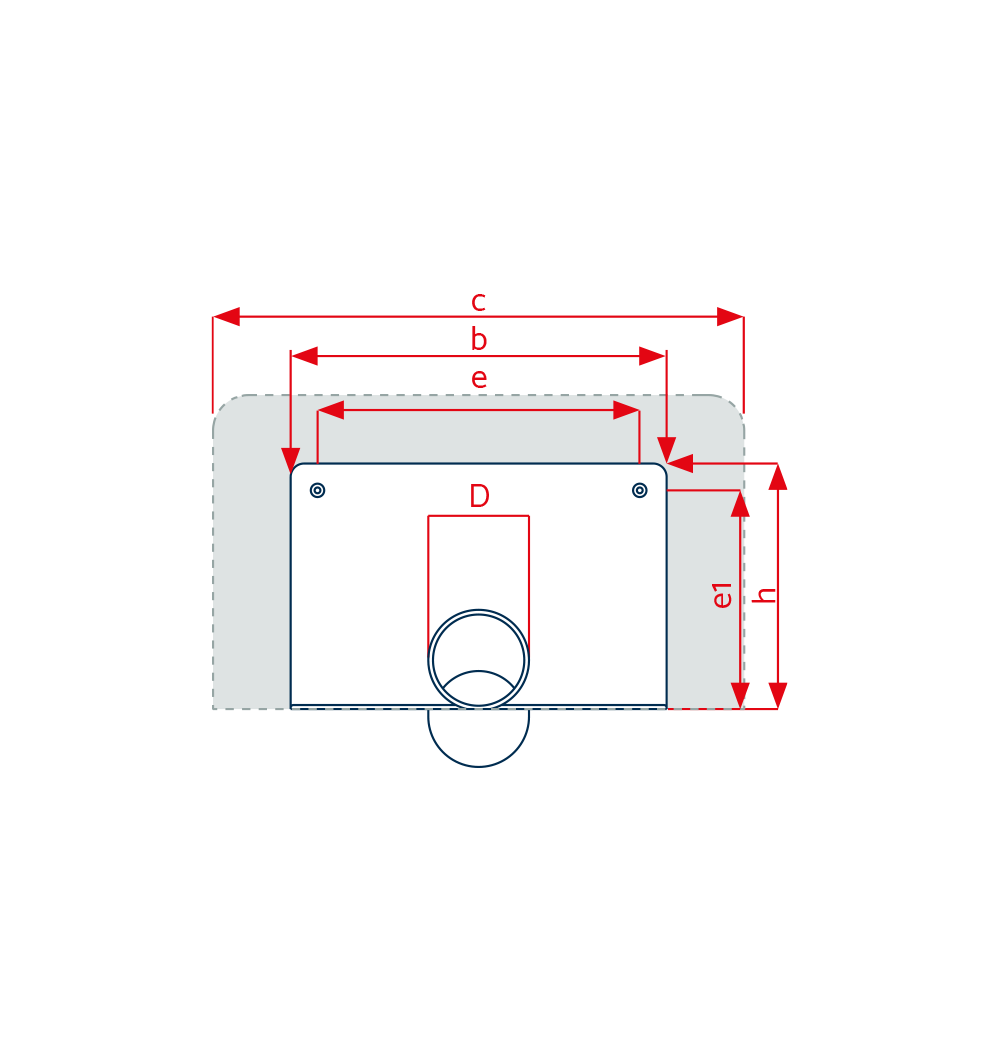

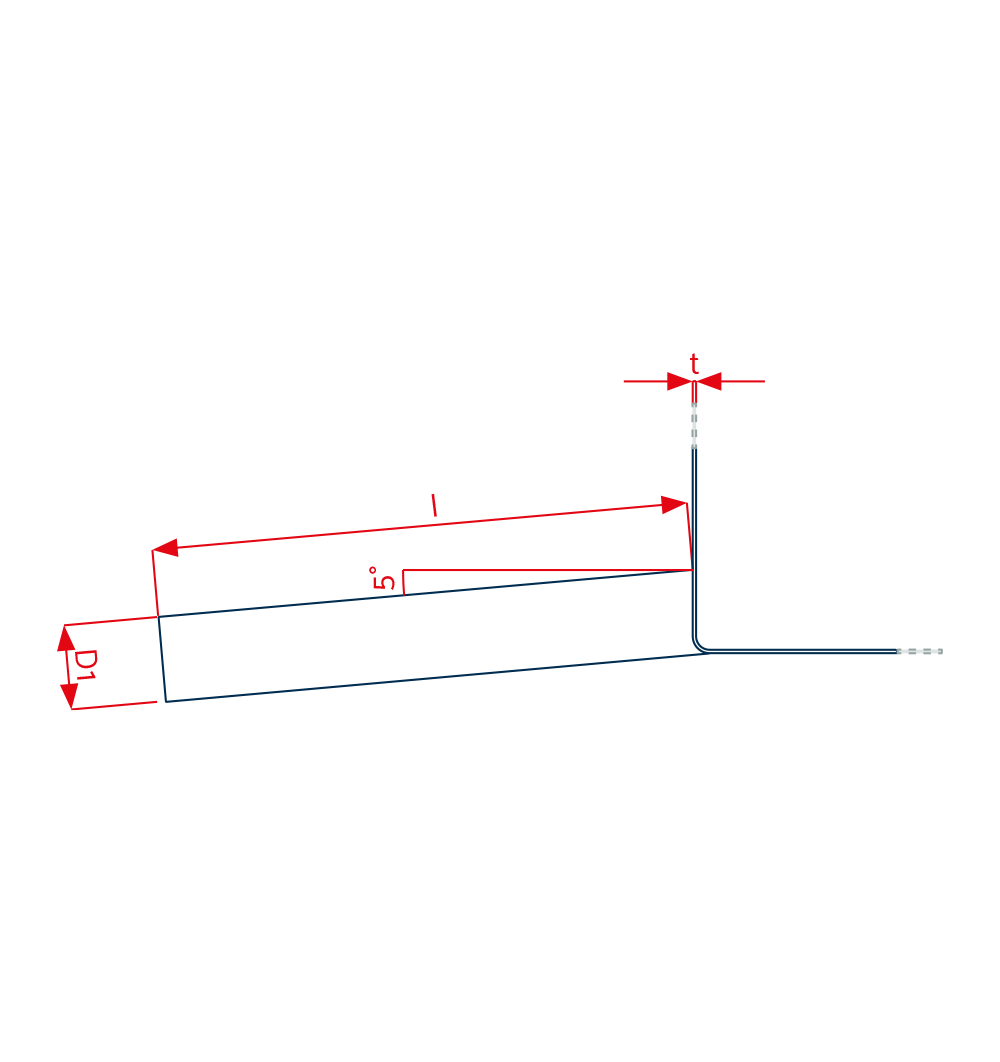

Technical drawings
| Technical data | |
|---|---|
| D | 50 / 63 / 75 / 90 / 110 / 125 mm |
| l | 480 mm1 |
| a | 112 mm |
| b | 280 mm |
| c | 470 mm |
| d | 500 mm |
| h | 186 mm |
| e | 240 mm |
| e1 | 166 mm |
| e2 | 92 mm |
| t | 3 mm |
| Pipe inclination 5 ° | |
1 Special lengths available on request
Downloads
Package units
Supplied in cartons, PU 1 unit
Tailored to meet your requirements
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
Function
Molded part with a laminated bitumen connection sleeve for horizontal drainage through the parapet. The large dimensions of 470 x 500 mm ensure a secure connection in all installation scenarios. Installation with connection to a piping system for water discharge or free outflow. When used for emergency drainage, the exact installation point must be determined based on the water level.
Material
FPO/PP modified with a permanently laminated bitumen connection sleeve. The materials are modified to be weather-resistant: UV-stabilized, resistant to thermal degradation and oxidative aging, as well as impact-resistant in cold temperatures.
Scupper BIT XL, round
Alternatively also available with accumulation ring
| Material | Diameter | Technical information |
|---|---|---|
| BIT sandet | D 50 mm (DN 50) |
With bitumen sleeve (470 x 500 mm), Pipe length 480 mm 1 |
| D 63 mm | ||
| D 75 mm (DN 70) |
||
| D 90 mm | ||
| D 110 mm (DN 100) |
||
| D 125 mm (DN 125) 2 |
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
1 Special lengths available on request
2 Attention: Please note that the technical dimensions and visual representation may differ from the illustration
Examples
Drainage performance
LGA-certified characteristics
| Diameter | Accumulation height | |
|---|---|---|
| 35 mm | 65 mm | |
| D 50 mm (DN 50) |
0.51 litre/sec. | 1.31 litre/sec. |
| D 75 mm (DN 70) |
0.65 litre/sec. | 1.65 litre/sec. |
| D 90 mm | 0.65 litre/sec. | 1.90 litre/sec. |
| D 110 mm (DN 100) |
1.00 litre/sec. | 2.65 litre/sec. |
| D 125 mm (DN 125)1 |
1.00 litre/sec. | 2.80 litre/sec. |
1 Attention: Please note that the technical dimensions and visual representation may differ from the illustration
Technical drawings
| Technical data | |
|---|---|
| D | 50 / 63 / 75 / 90 / 110 / 125 mm |
| l | 480 mm1 |
| a | 112 mm |
| b | 280 mm |
| c | 470 mm |
| d | 500 mm |
| h | 186 mm |
| e | 240 mm |
| e1 | 166 mm |
| e2 | 92 mm |
| t | 3 mm |
| Pipe inclination 5 ° | |
1 Special lengths available on request
Downloads
Package units
Supplied in cartons, PU 1 unit
Tailored to meet your requirements
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
