Gravel basket Vario Fix
The patented new product, now available. The fastest gravel basket in the world. Insert, press, lock
Function
Molded part as an attachment for a scupper, drain or gully. Serves to retain coarse dirt particles to stop the drainage system from clogging up. The flow-optimised geometry ensures low levels of loss and a high flow rate even in heavy rain.
Material
- PE Black
- Low-temperature impact resistant plastic, weatherproof, UV-stabilized
Versions
| Accessory suitable for | Diameter |
|---|---|
| Drain D 50 mm (DN 50) – D 160 mm (DN 150) |
Basket-D 260 mm Basket-H 95 mm |
| Scupper D 50 mm (DN 50) – D 125 mm (DN 125) |
Installation Gravel basket Vario Fix for drains and gullies

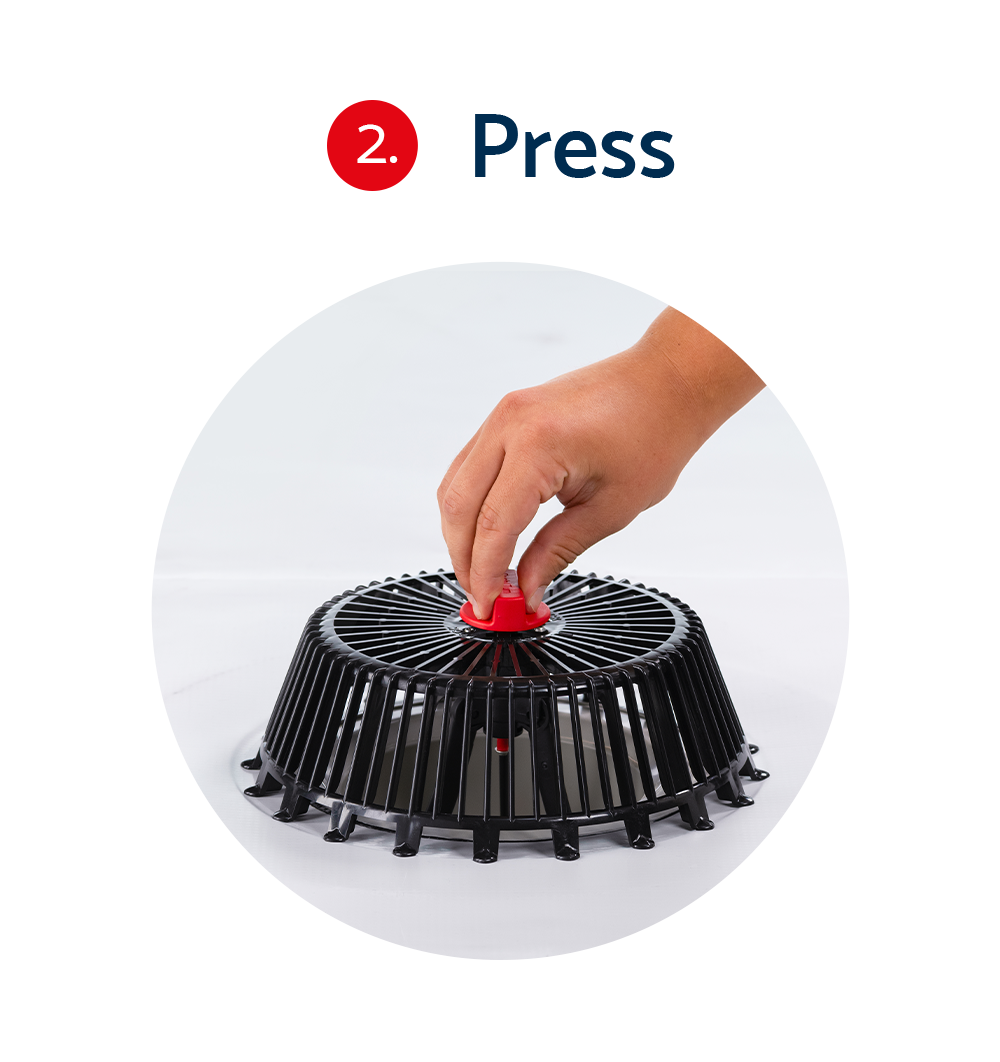

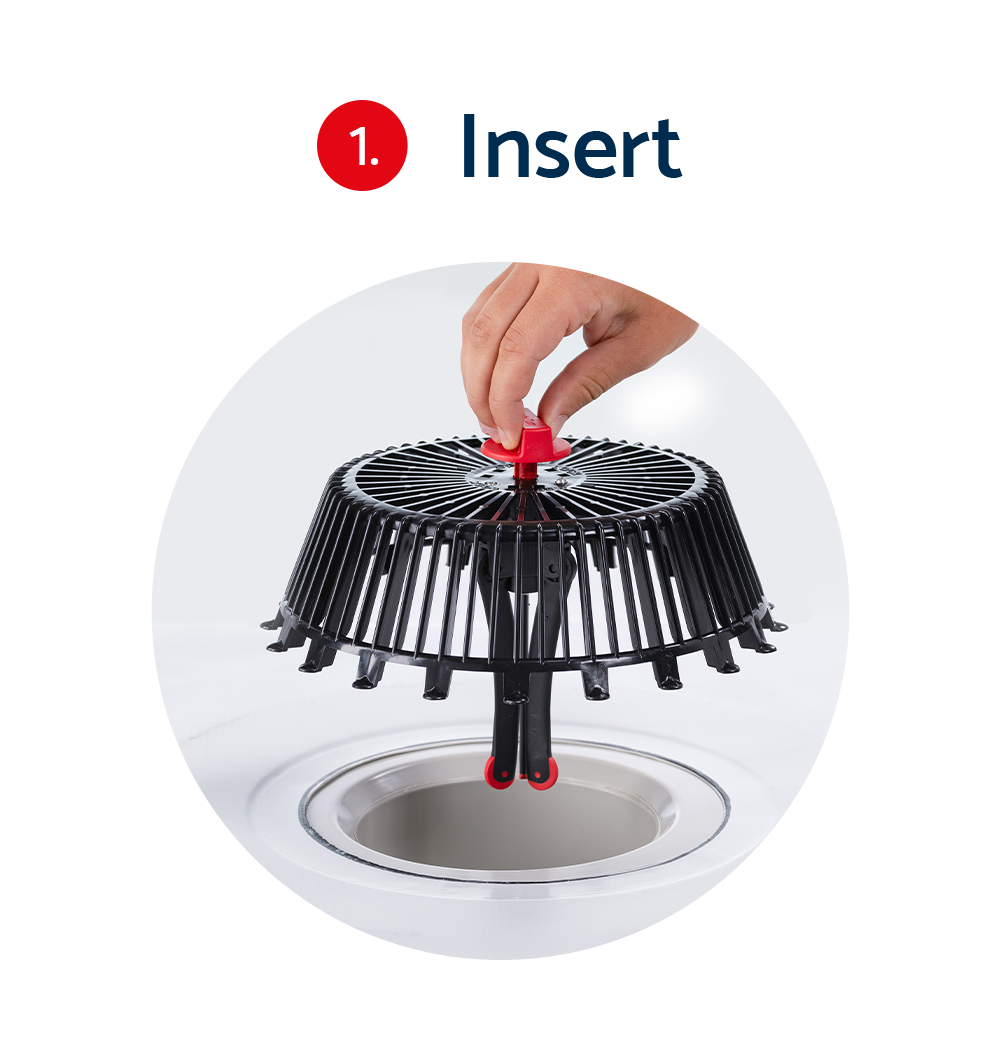

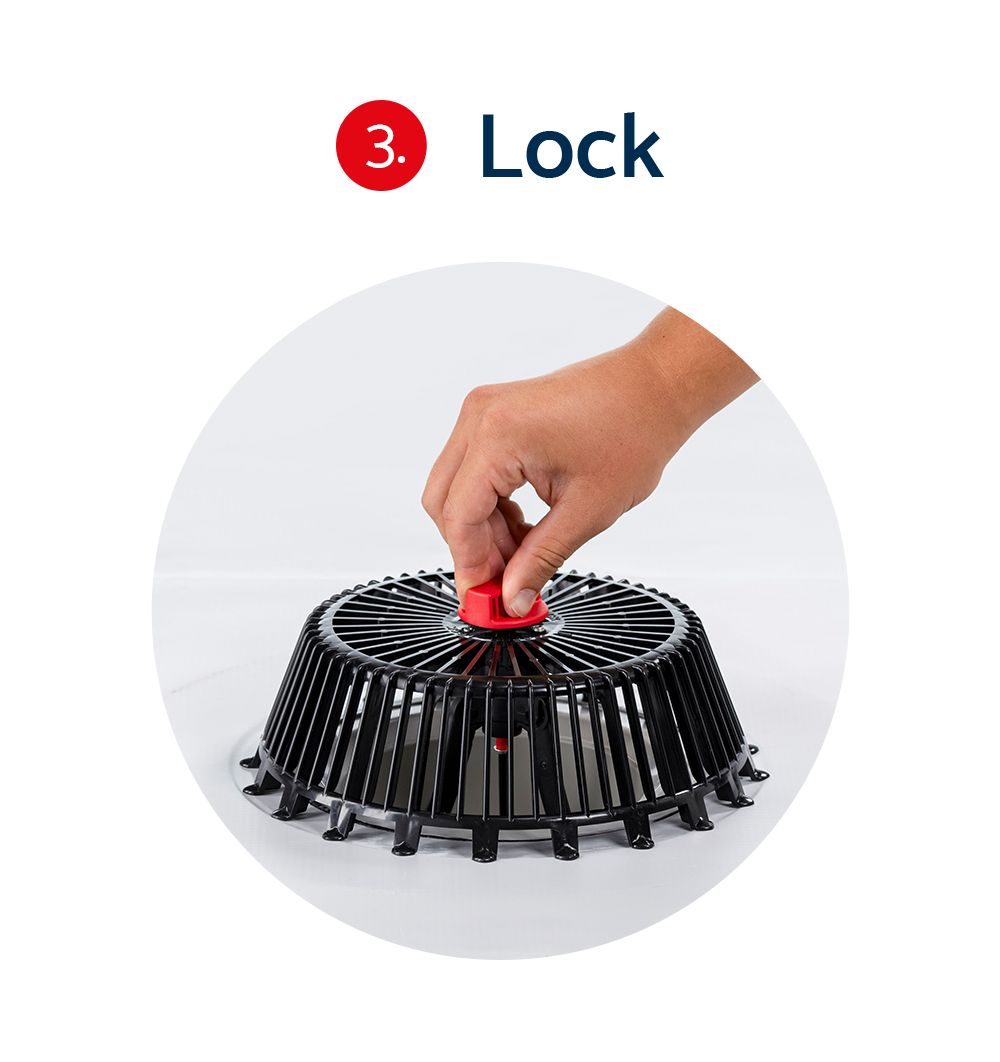

The delivery is ready for installation. Place the gravel basket centrally on the drain or gully, press the locking button down and turn it to the right to lock – done. The spreading feet can be continuously adjusted to the diameter of the drain or gully with the turning mechanism. For later removal, simply turn the knob to the left again to unlock and pull out. When unlocked, the spreader feet can simply be pressed together again.
Examples
Certifications
Our gravel baskets have been tested by TÜV Rheinland LGA Products GmbH.
Technical drawings
Gravel basket Vario Fix for drains and gullies
Technical data
Gravel basket Vario Fix for drains and gullies
| Technical data | ||
|---|---|---|
| H1 | 95 | mm |
| H2 | 77,50 | |
| D1 | 260 | |
| D2 | D 50 – D 160 | |
Technical drawings
Gravel basket Vario Fix for scupper
Technical data
Gravel basket Vario Fix for scupper
| Technical data | ||
|---|---|---|
| D | 262 | mm |
| T | 77,5 | |
Downloads
Our Vario Fix live in action!
Only available in german.
Package units
Supplied in cartons, each containing 10 units
Tailored to meet your requirements
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
Function
Molded part as an attachment for a scupper, drain or gully. Serves to retain coarse dirt particles to stop the drainage system from clogging up. The flow-optimised geometry ensures low levels of loss and a high flow rate even in heavy rain.
Material
- PE Black
- Low-temperature impact resistant plastic, weatherproof, UV-stabilized
Versions
| Accessory suitable for | Diameter |
|---|---|
| Drain D 50 mm (DN 50) – D 160 mm (DN 150) |
Basket-D 260 mm Basket-H 95 mm |
| Scupper D 50 mm (DN 50) – D 125 mm (DN 125) |
Installation Gravel basket Vario Fix for drains and gullies
The delivery is ready for installation. Place the gravel basket centrally on the drain or gully, press the locking button down and turn it to the right to lock – done. The spreading feet can be continuously adjusted to the diameter of the drain or gully with the turning mechanism. For later removal, simply turn the knob to the left again to unlock and pull out. When unlocked, the spreader feet can simply be pressed together again.
Examples
Certifications
Our gravel baskets have been tested by TÜV Rheinland LGA Products GmbH.
Technical drawings
Gravel basket Vario Fix for drains and gullies
Technical data
Gravel basket Vario Fix for drains and gullies
| Technical data | ||
|---|---|---|
| H1 | 95 | mm |
| H2 | 77,50 | |
| D1 | 260 | |
| D2 | D 50 – D 160 | |
Technical drawings
Gravel basket Vario Fix for scupper
Technical data
Gravel basket Vario Fix for scupper
| Technical data | ||
|---|---|---|
| D | 262 | mm |
| T | 77,5 | |
Downloads
Our Vario Fix live in action!
Only available in german.
Package units
Supplied in cartons, each containing 10 units
Tailored to meet your requirements
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
