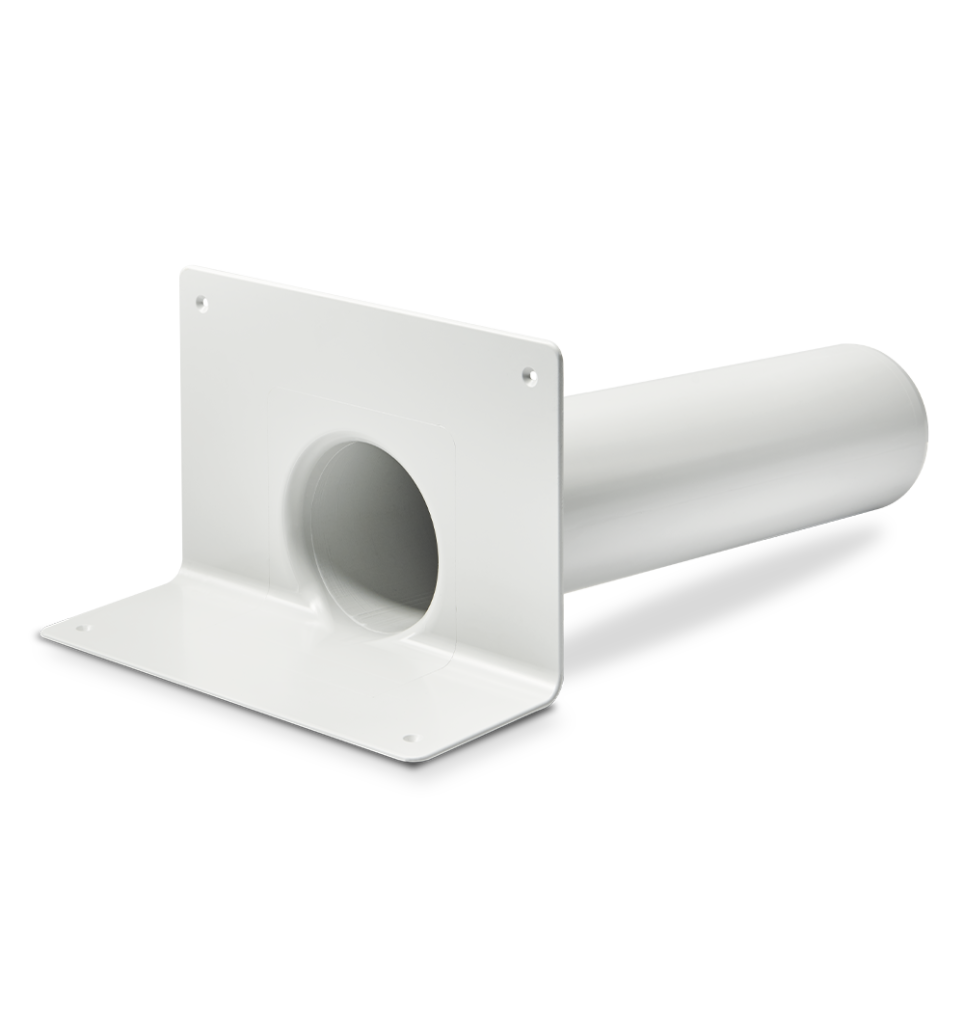

Scupper, round
Horizontal drainage through the parapet
Function
Structure part for horizontal drainage through the parapets of flat roofs or terraces. Install by connecting to a pipe system for water drainage, or use for free-flow drainage. When installing the emergency overflow, the precise installation point depends on the water level.
Material
Our emergency overflows are available in PVC, FPO/PP and BIT for connection to the matching material used for the roof membrane. The material compounds used are low-temperature impact resistant, weatherproof and stabilized against ultraviolet rays, oxidative decomposition and thermal aging.

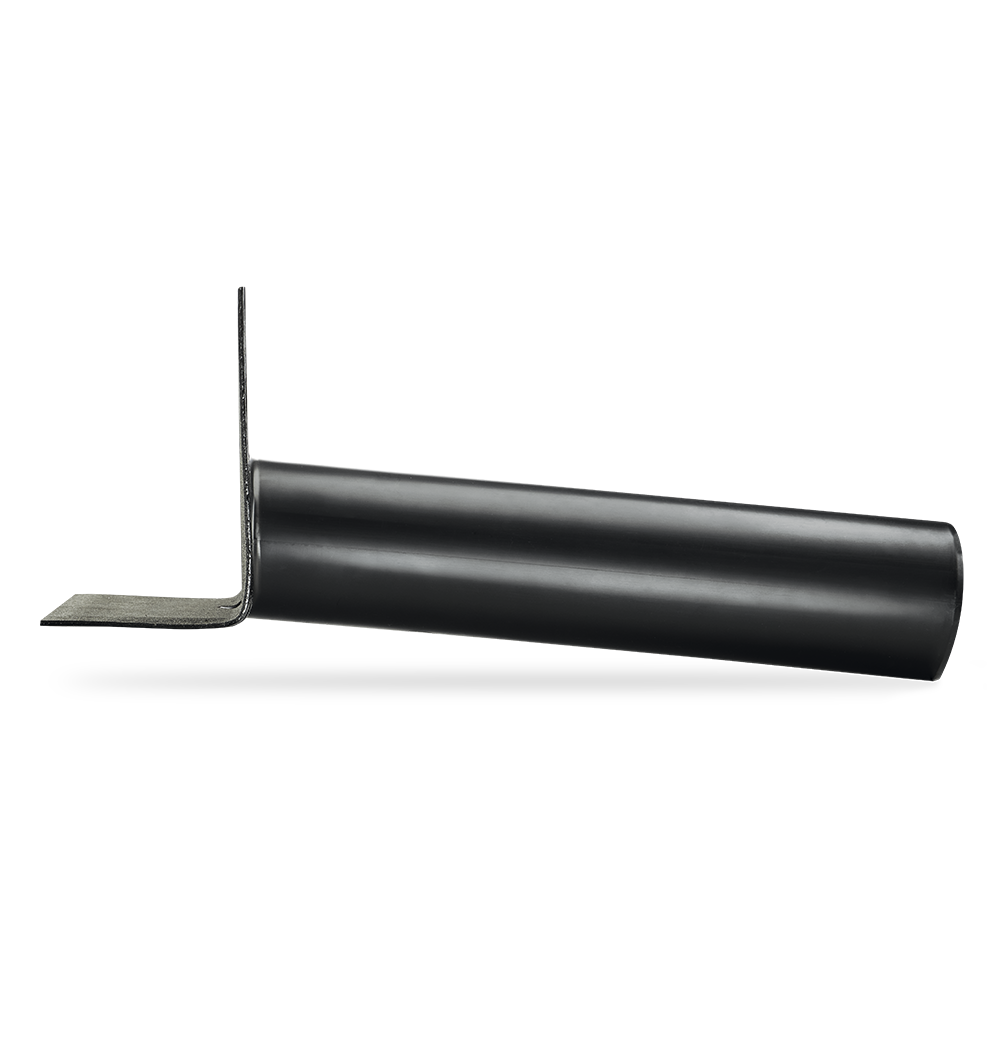

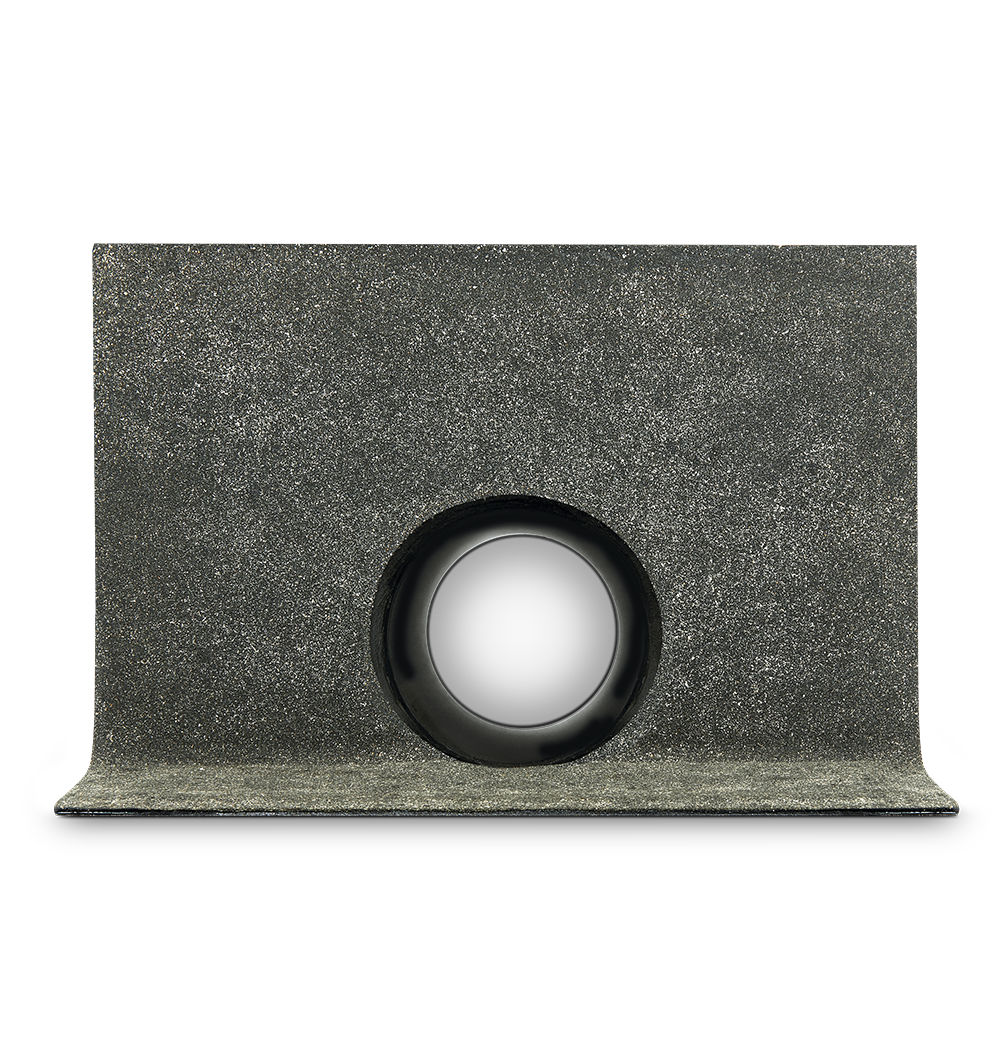

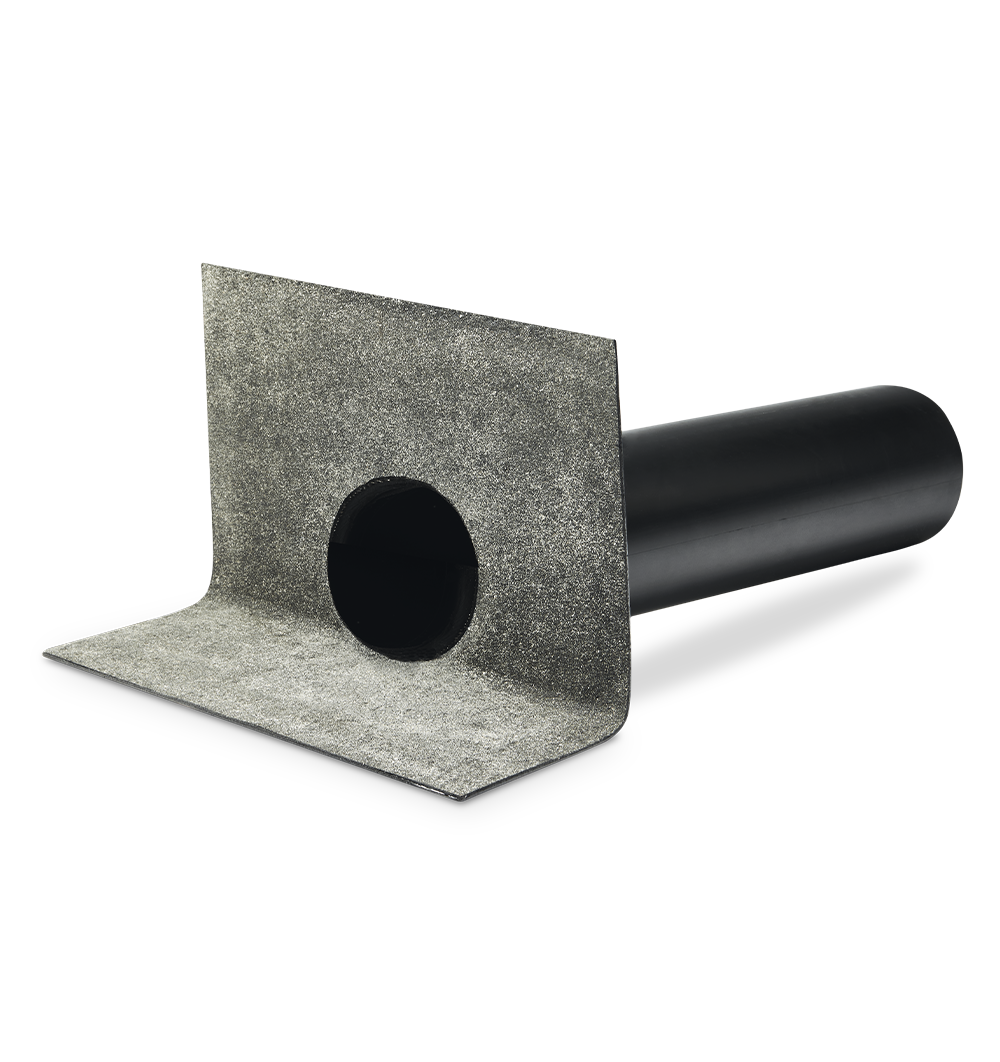

Versions BIT
| Material | Technical information | |
|---|---|---|
| BIT | With bitumen sleeve, Pipe length 480 mm |
D 50 mm (DN 50) |
| D 63 mm | ||
| D 75 mm (DN 70) |
||
| D 90 mm | ||
| D 110 mm (DN 100) |
||
| D 125 mm (DN 125) |
||
Pipe inclination 5°.
Special sizes available on request / The processing instructions of the roof sheeting manufacturer must be observed; Materials and material compounds used may be subject to change.

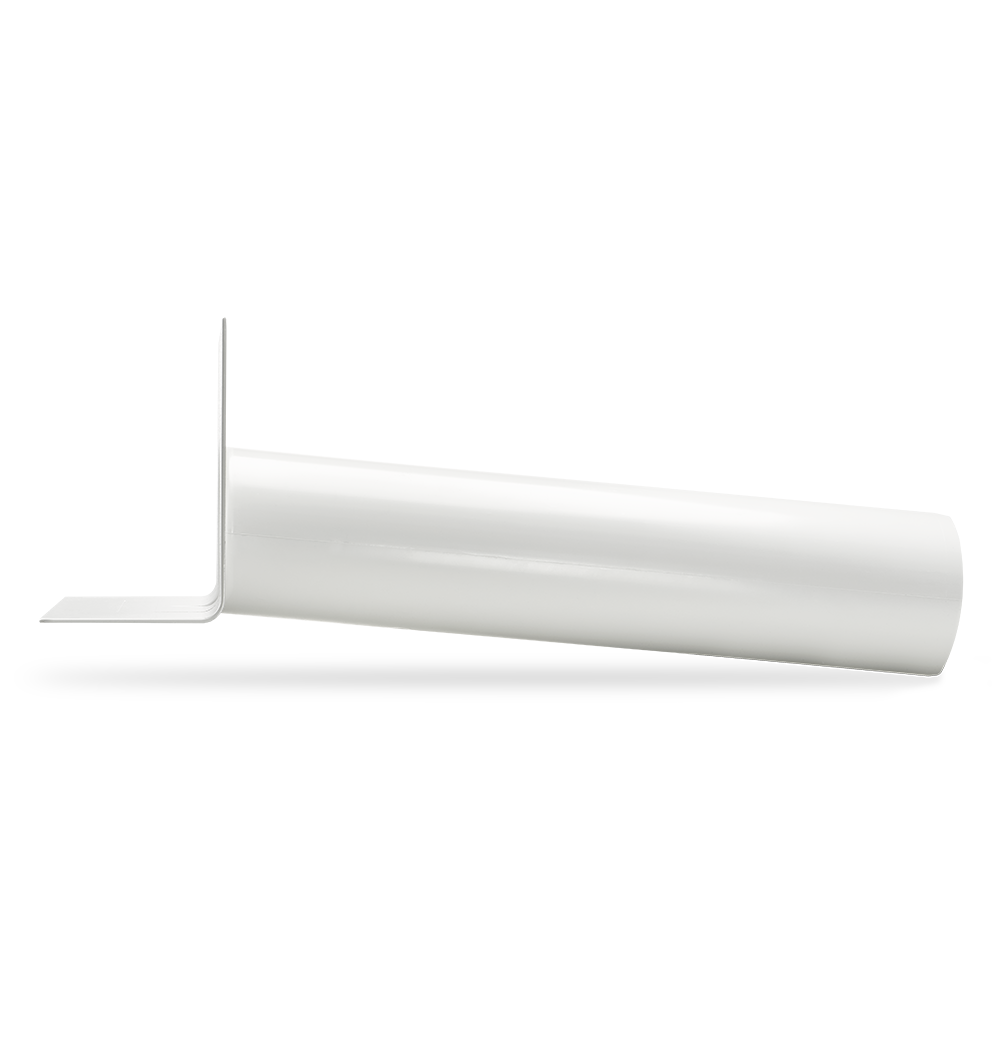

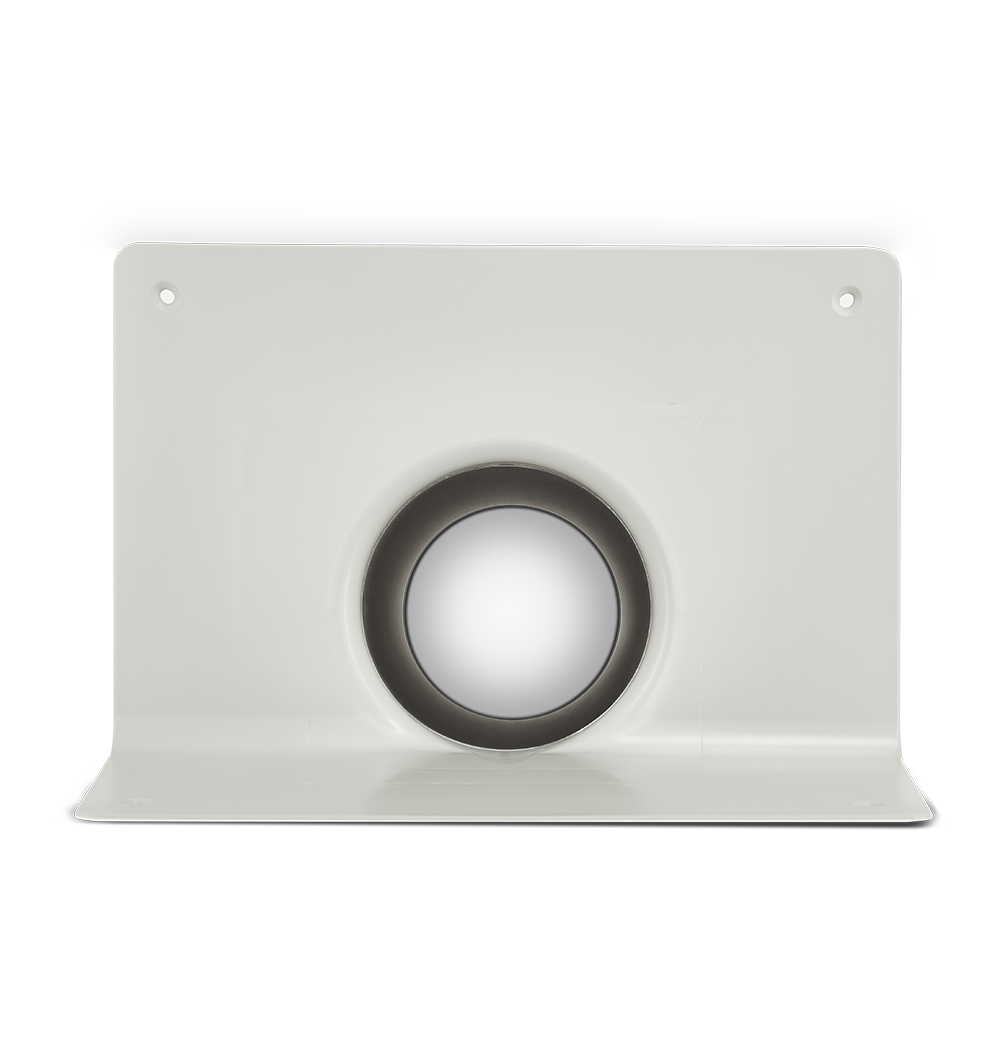

Versions PVC
| Material | Technical information | |
|---|---|---|
| PVC similar to RAL 7035, Light grey |
Pipe length 480 mm | D 50 mm (DN 50) |
| D 63 mm | ||
| D 75 mm (DN 70) |
||
| D 90 mm | ||
| D 110 mm (DN 100) |
||
| D 125 mm (DN 125) |
||
Pipe inclination 5°.

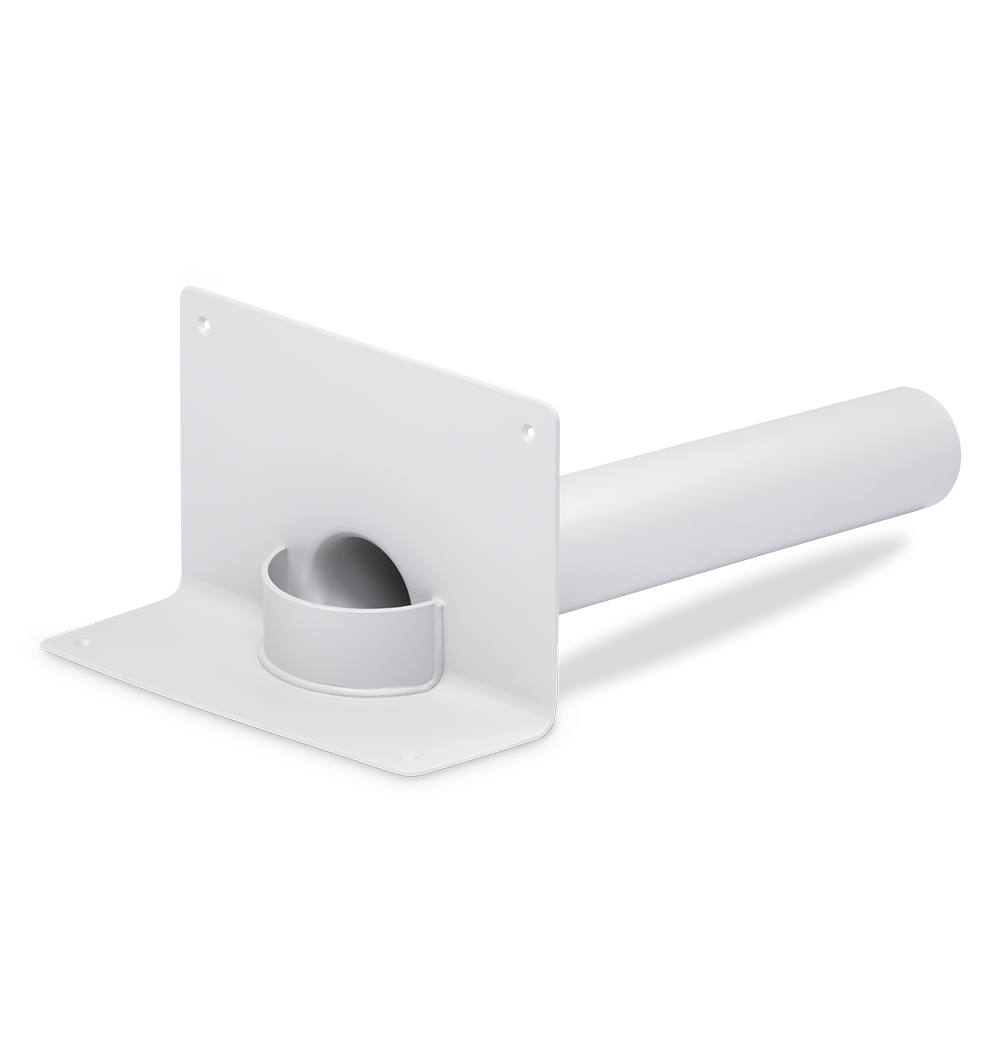

Also available with matching retaining ring (not discountable) / Special sizes available on request / The processing instructions of the roof sheeting manufacturer must be observed; Materials and material compounds used may be subject to change.
Versions FPO/PP
| Material | Technical information | |
|---|---|---|
| FPO/PP similar to RAL 7044, Silk grey |
Pipe length 480 mm | D 50 mm (DN 50) |
| D 63 mm | ||
| D 75 mm (DN 70) |
||
| D 90 mm | ||
| D 110 mm (DN 100) |
||
| D 125 mm (DN 125) |
||
Pipe inclination 5°.
Also available with matching retaining ring (not discountable) / Special sizes available on request / Also available in PE (roofing membranes based on PE) / The processing instructions of the roof sheeting manufacturer must be observed; Materials and material compounds used may be subject to change.
Examples
Technical drawings
Drainage performance litre/sec:
LGA-certified characteristics
| Technical data | ||
|---|---|---|
| Diameter | Accumulation height | |
| 35 mm | 65 mm | |
| D 50 mm (DN 50) |
0.51 | 1.31 |
| D 75 mm (DN 70) |
0.65 | 1.65 |
| D 90 mm | 0.65 | 1.90 |
| D 110 mm (DN 100) |
1.00 | 2.65 |
| D 125 mm (DN 125) |
1.00 | 2.80 |
| Technical data | ||
|---|---|---|
| D1 | 50 / 63 / 75 / 90 / 110 / 125 | mm |
| l | 480 | |
| a | 112 | |
| b | 280 | |
| h | 112 | |
| e | 240 | |
| e1 | 20 | |
| e2 | 92 | |
| t | 3 | |
Downloads
Package units
Supplied in cartons, each containing 1 unit
Tailored to meet your requirements
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
